250mm×250mm -500mm×500mm High Speed Automatic API Oil Steel Pipe
Making Machine

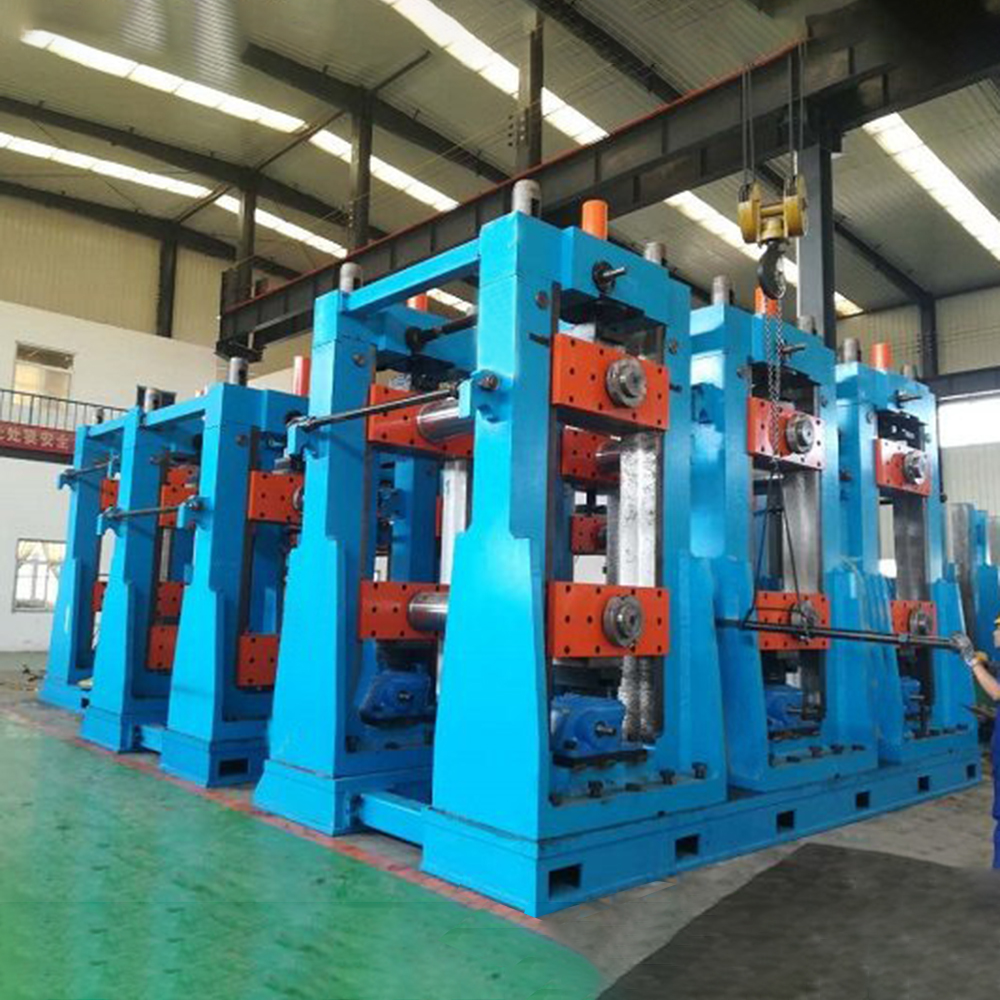

ERW660 high frequency longitudinal welded pipe production line /
pipe making machine / tube mill is designed to produce welded pipes
of 325mm-660mm in OD and 6mm-20mm in wall thickness, as well as
corresponding square and rectangular pipe.
Advantage:
When producing round pipe, it can utilize ZTF forming technique
When producing square & rectangular tube, it can utilize directly
square-square (DSS) technique
Products:
Architectural structure pipes, API pipes, tower footing tubes,
automobile beam steel pipe and other products.
Basic Technical Information of Welded Pipe Production LineProduct&yield | Round Pipe | 325mm-660mm Thickness: 6.0mm-20.0mm |
| Square & rectangle tube | 250mm×250mm -500mm×500mm Thickness:6.0mm-20.0mm |
Length | 6m-12m Length Tolerance: ±3mm |
Production Speed | 20 m/min |
Production capacity | 180,000ton/year |
Consumption | Mill installed capacity | 1200 kw |
Line Area | 350m(length) ×35m (width) |
worker | 6-8 workers |
Raw Material
| Carbon Steel coil | Carbon steel coil Q235B(ASTM GR·D,σs 230) |
Technical flow
Scrolling up→ Uncoiling → Shear and Welding→ Spiral accumulator→
Forming → H.F. induction welding→ External burr removing→ Cooling →
Sizing→ Flying saw → Run out table →Inspecting→ Packing→ Warehouse
Forming process:
ZTF forming process:Save alt least 60% roller cost with electric
control adjustment
General round-to-square process:Stable forming process
Round-to-Square with Turks head:Good pipe quality
Process of directly square-to-square(DSS):One set of roller can
produce all tubes with electric control and automatic adjustment
We can also design square tube machine depends on customer’s
requirement.
