Scrolling up→ Uncoiling → Shear and Welding→ Spiral accumulator→
Forming → H.F. induction welding→ External burr removing→ Cooling →
Sizing→ Flying saw → Run out table →Inspecting→ Packing→ Warehouse
Square Tube Mill Auxiliary Machines:
Customers can trust us to buy the auxiliary machines. Our choice of
suppliers for the auxiliary parts is made after 22 years of
experience.
Un-coiler
Function: Used for supporting strip steel coil and open it as strip steel so
as to make preparation for the pipe forming process.

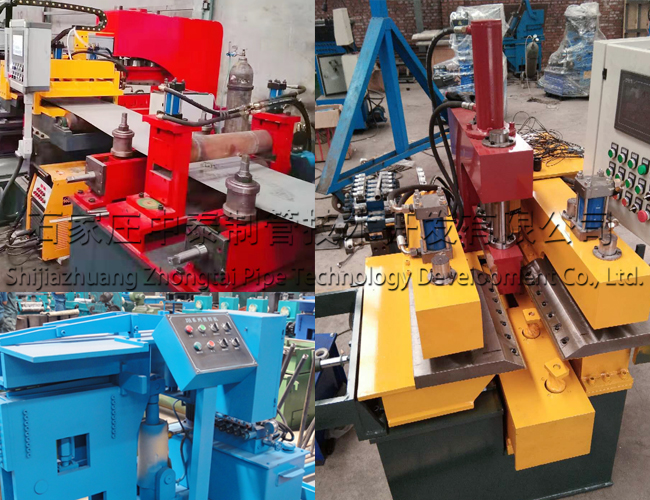

Shearing butt welding
2 Types: Automatic & Manual
Function: Shear & end welder parallel cuts the head of the strip coming out
of uncoiler and the tail of the strip steel going into the
accumulator, and weld them together to form a smooth and continuous
line of strip steel.
Strip Accumulator
Function: Accumulator is used to accumulate strip steel from uncoiler and
provide strip steel to forming unit. It leaves time for the shear &
end welder for strip welding and stores certain amount of strip for
continuous forming.

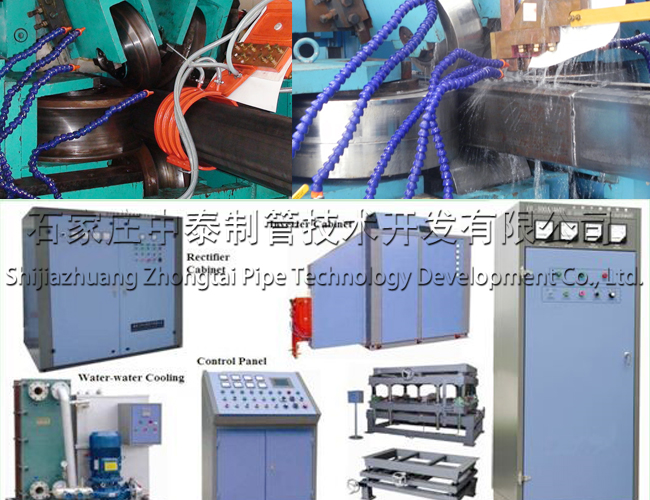

Solid State High Frequency Welder
Function: The welder is used for welding edge heating with high-frequency
heating device. The whole set of solid-state H.F welder comprises
of rectifying cabinet, inverter, output cabinet, connecting optical
fiber, closed loop water cooling system, central operator console,
and mechanical adjustment device.
Saw Cutting System
Function: Flying saw is used to cut tube during static and motion status in
continuously production into desired length.
Straightening Machine
Function:Straightening machine is a finishing equipment for the
high-frequency straight seam welded pipe production line, which is
used to straighten the steel pipe to eliminate the stress and
bending after the steel pipe forming and welding.
Automatic Stacking and Packing Machine
Function: Electrical control using PLC control, touch screen, to achieve
human-computer dialogue, manual, automatic between the free
conversion.
Company Introduction
FAQ:
Q:Are you manufacturer?
A:Yes,we are manufacturer. We have 4 factories ( Machining,
Assembling, Heat treatment, and
Moulding ). We also have our own R&D department. Welcome to
visit us.
Q:What kind of payment term do you do?
A: We do T/T and L/C.
Q:What info do you need before giving me the price and proposal?
A: Since we design individual machine based on our customer's
requirement, we need your desired
products' basic dimension, including all the pipe diameter(or tube
length), thickness range , usage,
raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant for pre-sales
service .Also we can help you
solve the raw material (steel coil) purchase, worker training,
international market price, and more.
Q:How do you do QA?
A:We have special team to do strict QA,this is one of our
strengths:
(1)Every gear box will be tested for 8 hours with oil inside to
guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of
tolerance critical parts will be
inspected for all dimensions.
Q:Why I should choose you? what are the differences between you and
other Chinese suppliers?
A:We are concentrate on pipe making machines for more than 20
years. We have constructed many
steady trading partners in Asia,Africa, middle east, Europe, and
South America throughout the years.
Our innovative designed production line and each single unit of the
production line are not only
economical but also practical.
