    Steel Pipe Production Shear End Welder Automatic Butt Machine

    Ask Lasest Price
    Brand Name : ZTZG
    Model Number : ZTZG - shear and welder
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/year
    Delivery Time : 120 days
    • Product Details
    • Company Profile

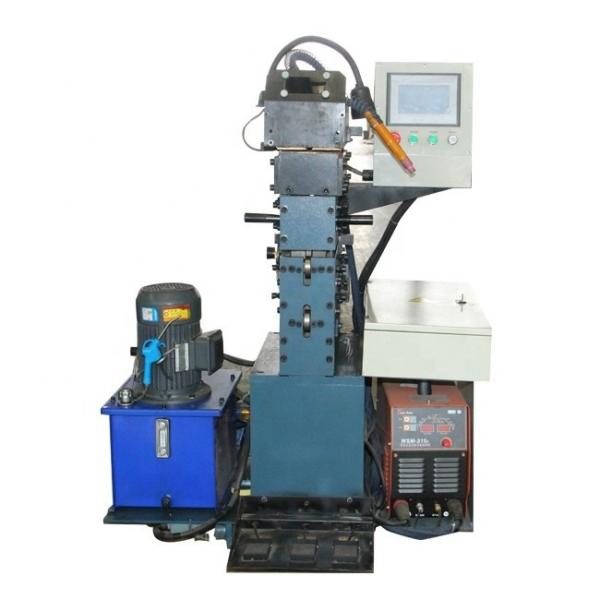

    Steel Pipe Production Shear End Welder Automatic Butt Machine

    Steel Pipe Production Automatic Shearing And Butt End Welding Machine
    To connect the strips after cutting the preceding coil tail end and the succeeding coil top end and being welded together by CO2 gas shielding welding to keep the Pipe Welding Line running continuously.
    NameSteel Pipe Production Automatic Shearing And Butt End Welding Machine
    After WarrantyVideo technical support, Online support, Field maintenance an
    Core ComponentsPLC, Engine, Bearing, Gearbox, Motor
    Dimensions3X4X2M
    Usageshear and butt steel trip
    After-sales ServiceField installation, commissioning and training, Field mainte
    Key Selling PointsHigh Safety Level
    Weight (KG)10000 KG
    ColorCustomer's Requirement
    BrandZTZG
    Hydraulic
    210
    250
    300
    350
    Effective welding length
    210mm
    250mm
    300mm
    350mm

    Effective shear lengthe
    200mm
    250mm
    300mm
    350mm
    Strip Thickness
    0.8~2.5mm
    0.8~5mm
    0.8~5mm
    0.8~5mm
    Welding Speed
    500-1500nm/min
    500-1500nm/min
    500-1500nm/min
    500-1500nm/min
    Walking Speed
    0.10mm
    0.10mm
    0.10mm
    15~200A
    Shear pressure
    0. 4Mpa
    10Mpa
    10Mpa
    10Mpa
    Dimensionse
    700*700*1200mm
    1050*750*1400mm
    1150*800*1400mm
    1200*900*1400mm
    Installed power
    18.5Kw
    18.5Kw
    18.5Kw
    18.5Kw
    Equipment weight
    400kg
    600kg
    700kg
    900kg

    Q:Are you manufacturer?
    A:Yes,we are manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also

    have our own R&D department. Welcome to visit us.
    Q:What kind of payment term do you do?
    A: We do T/T and L/C.
    Q:What info do you need before giving me the price and proposal?
    A: Since we design individual machine based on our customer's requirement, we need your desired products' basic

    dimension, including all the pipe diameter(or tube length), thickness range , usage, raw material steel grade, coil

    weight, and degree of automation.
    Q: What should I do if I just start a new business?
    A:Contact us immediately ,we provide free consultant for pre-sales service .Also we can help you solve the raw material

    (steel coil) purchase, worker training, international market price, and more.
    Q:How do you do QA?
    A:We have special team to do strict QA,this is one of our strengths:
    (1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

    (2)Every shaft will be inspected for the centering jumpiness.
    (3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.
    Q:Why I should choose you? what are the differences between you and other Chinese suppliers?
    A:We are concentrate on pipe making machines for more than 20 years. We have constructed many steady trading partners

    in Asia,Africa, middle east, Europe, and South America throughout the years. Our innovative designed production line and

    each single unit of the production line are not only economical but also practical.
