ERW219 precision straight seam high-frequency pipe forming machine
Scope of the production pipe
Outer diameter :89-219mm Wall thickness :2.0-8.0mm
Machine production efficiency :150T/8hours
Production speed :0-60m/min
Equipment volume: approximately L50xW2.5 xH2.5m
Voltage: customized
pressure: 0.6-1.0 mpa
Main motor power: 160KW + 200KW
Solid high-frequency power: 400KW
Equipment color: customizable
Weight: about 150ton

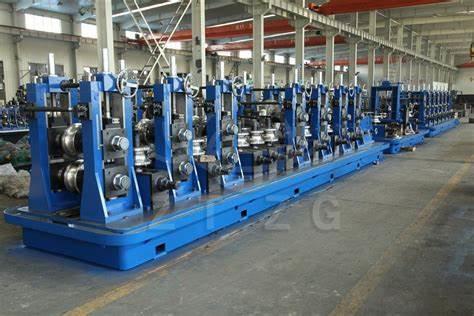

Basic Configuration
{steel strip} --- un-coiler --- (opener & straightener & pincher &
leveler) --- strip-head shearer & butt welder station --- vertical
cage accumulator or horizontal spiral accumulator loop --- forming
M/C (main driving unit + flattening unit + breakdown section + fin
pass section +seam guiding stand + high frequency induction welding
system + squeeze welding roller stand + outside scrafing unit +
horizontal ironing stand) --- emulsion cooling section --- sizing
M/C (main driving unit + sizing section + speed testing unit +
straightener + pull-out stand) --- CNC flying saw under computer
control --- conveyor table.
Advantages
√ High production efficiency, line speed can be up to 50m/min.
√ High yielding, the machine works stably at a high speed, which
improves the yielding of products.
√ Low wastage, low unit wastage and low production cost.
√ High accuracy, diameter error is only 0.5/100 of the pipe OD
Technical Flow Of The Production Line
Parameter list
| Model | Round pipe(mm) | Square pipe(mm) | Thickness(mm) |
|
| SP20 | Ф8-Ф20 | 6x6-15x15 | 0.3-1.5 |
| SP32 | Ф10-Ф32 | 10x10-25x25 | 0.5-2.0 |
| SP50 | Ф20-Ф50 | 15x15-40x40 | 0.8-3.0 |
| SP76 | Ф32-Ф76 | 25x25-60x60 | 1.2-4.0 |
| SP89 | Ф42-Ф89 | 35x35-70x70 | 1.5-4.5 |
| SP114 | Ф48-Ф114 | 40x40-90x90 | 1.5-4.5 |
| SP140 | Ф60-Ф140 | 50x50-110x110 | 2.0-5.0 |
| SP165 | Ф76-Ф165 | 60x60-130x130 | 2.0-6.0 |
| SP219 | Ф89-Ф219 | 70x70-170x170 | 2.0-8.0 |
| SP273 | Ф114-Ф273 | 90x90-210x210 | 3.0-10.0 |
| SP325 | Ф140-Ф325 | 110x110-250x250 | 4.0-12.7 |
| SP377 | Ф165-Ф377 | 130x130-280x280 | 4.0-14.0 |
| SP406 | Ф219-Ф406 | 170x170-330x330 | 6.0-16.0 |
| SP508 | Ф273-Ф508 | 210x210-400x400 | 6.0-18.0 |
| SP660 | Ф325-Ф660 | 250x250-500x500 | 6.0-20.0 |
| SP720 | Ф355-Ф720 | 300x300-600x600 | 6.0-22.0 |
