Product Profile
It takes steel strip as raw material, produces cold rolled section
steel by cold rolled section forming technology according to
relevant request.This kind of technology is advanced and reliable,
PROFIBUS technology is also adopted to the control system. All of
these ensured highly synchronization accuracy and best product
quality. All the indicators and operational costs are controlled at
the lowest level, which is greatly rewarded by the producers.
Usage

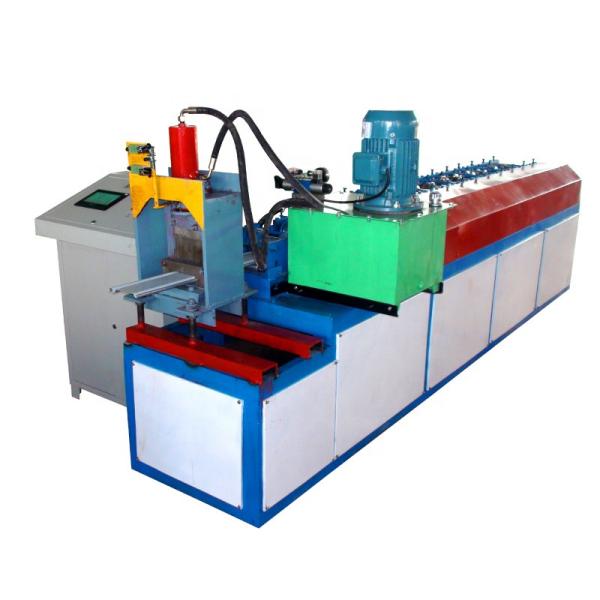

C-type steel machine strengthens its firmness with an arch type,
stabilizes its operation with gearbox drive, and improves product quality by adopting
molding shearing to avoid port deformations.Products are widely applied in purline set-up of
steel-structure houses.
Technic Flow
Decoiling the sheet-Sheet guiding-Roll forming-Measure
length-Cutting the panel-Panels to the supporter
Main Forming machine | Forming steps | 12 steps |
Shaft diameter | 50mm |
Machine stand | Individual Arch Plate |
Machine frame | steel plate welded |
roller material | Cr12 |
shaft material | 45# steel with quenching and tempering |
Work speed | standard: 20---25m/min; 45---60m/min |
Transport | By gear |
Power of main machine | 4kw |
Voltage | 380V-50HZ-3P(as required) |
Machine dimension | 5.5*0.8*1.5m |
Machine weight | About 2.5T |
Machine color | Yellow and blue(as required) |
Finished Product
Model List
Model | Strip width mm | Size mm | Thickness mm | Forming Speed m/min |
Lw100 | 40-100 | 10x10-25x25 | 0.5-2.0 | 20-80 |
LW200 | 80-200 | 20x20-50x50 | 1.0-3.0 | 20-80 |
LW400 | 200-400 | 50x50-100x100 | 2.0-5.0 | 20-60 |
LW600 | 240-600 | 60x60-150x150 | 2.0-7.0 | 20-60 |
LW800 | 320-800 | 80x80-200x200 | 2.5-10.0 | 20-40 |
LW1050 | 400-1050 | 100x100-250x250 | 3.0-12.7 | 15-30 |
LW1250 | 480-1250 | 120x120-300x300 | 3.0-14.0 | 10-25 |
LW1400 | 600-1400 | 150x150-350x350 | 4.0-16.0 | 8-20 |
LW1600 | 800-1600 | 200x200-400x400 | 6.0-18.0 | 8-15 |
LW2000 | 1000-2000 | 250x250-500x500 | 6.0-20.0 | 8-15 |
LW2200 | 1100-2200 | 280x280-550x550 | 6.0-22.0 | 8-15 |
About Us
Q:Are you manufacturer?
A:Yes,we are manufacturer. We have 4 factories ( Machining,
Assembling, Heat treatment, and Moulding ). We also have our own
R&D department. Welcome to visit us.
Q:What kind of payment term do you do?
A: We do T/T and L/C.
Q:What info do you need before giving me the price and proposal?
A: Since we design individual machine based on our customer's
requirement, we need your desired products' basic dimension,
including all the pipe diameter(or tube length), thickness range ,
usage, raw material steel grade, coil weight, and degree of
automation.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant for pre-sales
service .Also we can help you solve the raw material (steel coil)
purchase, worker training, international market price, and more.
Q:How do you do QA?
A:We have special team to do strict QA,this is one of our
strengths:
(1)Every gear box will be tested for 8 hours with oil inside to
guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of
tolerance critical parts will be inspected for all dimensions.
Q:Why I should choose you? what are the differences between you and
other Chinese suppliers?
A:We are concentrate on pipe making machines for more than 20
years. We have constructed many steady trading partners in
Asia,Africa, middle east, Europe, and South America throughout the
years. Our innovative designed production line and each single unit
of the production line are not only economical but also practical.
