Components of corrugated iron sheet machinery
No. | Name | Unit | Qty |
1 | Manual decoiler | set | 1 |
2 | Main forming machine | set | 1 |
3 | PLC control system | Set | 1 |
4 | Hydraulic pump station | set | 1 |
5 | post cut | set | 1 |
6 | electric motor | set | 1 |
7 | output table | set | 1 |
Corrugated iron sheet machinery production process
Uncoiling→Feeding material into machine→Roll forming→Measuring
length→ Auto cutting→Products receiving

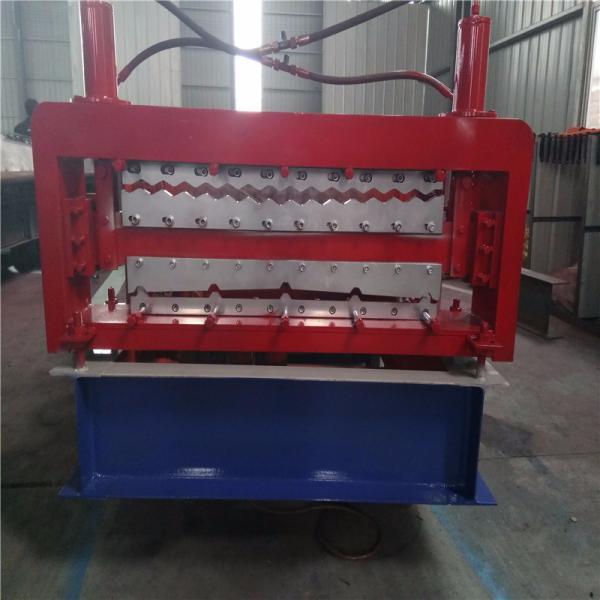

Details of corrugated iron sheet machinery
parameters
Name | Steel roll forming machine |
Raw materials | Galvanizd steel |
Thickness | 0.25-0.8mm or as request |
Roller Station | 9-15 Steps |
Shaft Material | 45#Steel |
Roller Material | 45#steel heat treated |
Transport | China |
Forming Speed | 4-6m/min |
Motor Power | 5.5kw or customized |
Voltage | 380V 50HZ 3Phase |
Cutting System | Hydraulic Cutting |
Control System | Detal PLC |
The whole line :Manual decolier, roll forming machine, hydraulic
station, PLC control system, Hydraulic cutter, run-out-table |
Advantage:
- automatic roller shutter slats door roll forming machine consist of one set decoiler, one sets of feeding platforms and one
roll forming core,and one cutting dies.
- automatic roller shutter slats door roll forming machine size we can design the machine all as customize,customer just show
us the profile drawing material thickness width, we can design the
machine according as the request
- When we finish automatic roller shutter slats door roll forming machine, we will test the machine and adjust the machine many times to be
sure the machine have a perfect status and when customer receive
the machine, the machine can be used very easy
FAQ
Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have 4 factories ( Machining,
Assembling, Heat treatment, and Moulding ). We also have our own
R&D department. Welcome to visit us.
Q: What kind of payment term do you do?
A: We do T/T and L/C.
Q: What info do you need before giving me the price and proposal?
A: Since we design individual machines based on our customer's
requirements, we need your desired products' basic dimensions,
including all the pipe diameter(or tube length), thickness range,
usage, raw material steel grade, coil weight, and degree of
automation.
Q: What should I do if I just start a new business?
A: Contact us immediately, we provide a free consultant for
pre-sales service. Also, we can help you solve the raw material
(steel coil) purchase, worker training, international market price,
and more.
Q: How do you do QA?
A: We have a special team to do strict QA, this is one of our
strengths:
(1)Every gearbox will be tested for 8 hours with oil inside to
guarantee there is no leak.
(2)Every shaft will be inspected for centering jumpiness.
(3)Every roller will be checked to make sure it's in the range of
tolerance critical parts will be inspected for all dimensions.
Q: Why I should choose you? what are the differences between you
and other Chinese suppliers?
A: We are concentrating on pipe-making machines for more than 20
years. We have constructed many steady trading partners in Asia,
Africa, the Middle East, Europe, and South America throughout the
years. Our innovative designed production line and each unit of the
production line practical.
