    OD 32-76mm Carbon Steel Pipe Production Line

    Ask Lasest Price
    Brand Name : ZTZG
    Model Number : ERW 76
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50 Set/Sets per Year
    Delivery Time : 120 days
    • Product Details
    • Company Profile

    OD 32-76mm Carbon Steel Pipe Production Line

    Thin-Walled Friction Saw Cutting Carbon Steel Pipe Welding Machine

    Why Choose us?

    1.30 years in metal processing equipment development

    2.15 years export experience, serves hundreds clients in 40 countries

    3.Top engineer team, advanced production process, maximize returns for client.

    4.24 hours online service, excellent service system

    ERW Pipe Mill
    OD 32-76mm Carbon Steel Pipe Production Line

    High frequency welded pipe making machine is the main equipment for the welded steel tube production line with decoiler, strip feeding, roller forming and sizing, high frequency solid welding, cutting and stock. Below are detailed specification of our pipe mill line.

    1: Which kind of pipe can be produced by our Pipe mill ?

    1. Oil & Gas Pipes
    2. Heating Pipe
    3. Low-pressure Process Pipeline
    4. Low Pressure Fire Fighting Pipeline
    5. Sewage Pipes
    6. Steel Scaffolding Pipe

    7. Wire and Cable Protection Pipe

    8. Structural Support Steel Pipe

    9. Industrial Steel Pipes

    10. Decoration Pipe

    11. Water Pipe

    12. Building pipe

    OD 32-76mm Carbon Steel Pipe Production Line

    2. Flow chart of our tube mill

    Standard flow chart of ISO/CE MS Iron Pipe Making Machine Production Line 8-219 mm ERW Pipe Mill:

    OD 32-76mm Carbon Steel Pipe Production Line

    Step 1: Uncoiler

    Function: support rolled plate and strip tension for erw pipe mill production line, by the frame, main shaft, increases of drum, brake.

    There are 3 types: pneumatic, hydraulic and manual.

    OD 32-76mm Carbon Steel Pipe Production Line

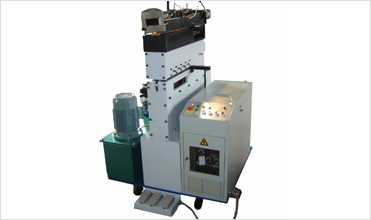

    Step 2: Shearing butt welding

    2 Types: Automatic & Manual

    Function: Shear the end of each strip coil, then welding them together, so that pipe making welding machine line can be continue production.

    OD 32-76mm Carbon Steel Pipe Production Line

    Step 3: Strip Accumulator

    Function: storage strip to keep continue production.
    2 Types: Horizontal / Vertical
    Advantage: Horizontal type can be larger storage. Vertical type is much cheap and small space occupied.

    OD 32-76mm Carbon Steel Pipe Production Line

    Step 4: Forming Section.

    Function: forming the tube from strip

    Advantage:
    >Advanced forming technical
    >One-stage molding platform
    >Reliable quality gear box
    >Siemens Beide motor

    OD 32-76mm Carbon Steel Pipe Production Line

    Step 5: High Frequency Welding

    Function: Welding the pipe , different thickness & diameter, the power of the HF welding machine welder

    Our advantage: We choose the China best welder: Sanyi brand.

    OD 32-76mm Carbon Steel Pipe Production Line

    Step 6: Sizing Section

    Function: sizing the tube to precise size

    Advantage:
    >Advanced sizing technical
    >One-stage molding platform
    >Reliable quality gear box and Siemens Beide motor
    >High precision, low error of the pipe size

    OD 32-76mm Carbon Steel Pipe Production Line

    Step 7: Flying saw / Cold Saw

    Function: cutting the tube mill line tube to right length.

    Fly saw: easy to operation, low investment.
    Cold saw: no noise, no burr cutting precision and cross section.

    OD 32-76mm Carbon Steel Pipe Production Line

    3. Pipe Making Machine Details Pictures

    Relying on superior products quality, Sino Power Group have successfully supplied world-class products and service to over 40 countries

    and areas around the world, such as: Poland, Spain, Russia, Yugoslavia, Ukraine, Turkey, Egypt, Saudi Arabia, India, Vietnam, Malaysia,

    Thailand, the Philippines, Pakistan, kazakhstan, Ethiopia, etc.OD 32-76mm Carbon Steel Pipe Production Line

    Technical Parameters

    Model Tube O.D (mm) Wall Thickness (mm) Square&Rectangle (mm) Thickness (mm) Speed (m/min)
    ZTZG-12 φ4~12 0.2~0.5 30~120
    ZTZG-16 φ6~16 0.2~0.8 30~120
    ZTZG-20 φ7~20 0.2~1.0 30~120
    ZTZG-25 φ9~25.4 0.25~1.2 30~120
    ZTZG-32 φ10~31.8 0.25~1.5 8X8~25X25 0.25~1.2 30~120
    ZTZG-32Z 0.3~2.0 10X6~30X20 0.3~1.5 30~100
    ZTZG-40 φ12.7~40 0.3~1.8

    10X10~30X30

    20X10~40X20

    0.3~1.5 30~110
    ZTZG-40Z 0.4~2.0 0.4~1.5 30~100
    ZTZG-50Q φ16~50.8 0.4~1.5

    12.7X12.7~40X40

    20X10~50X25

    0.4~1.2 30~110
    ZTZG-50 0.5~2.0 0.5~1.5 30~90
    ZTZG-50Z 0.6~2.5 0.6~2.0 30~80
    ZTZG-63Q φ19.05~63.5 0.6~2.0

    15X15~50X50

    20X10~60X30

    0.6~1.5 30~90
    ZTZG-63 0.7~3.0 0.7~2.5 30~80
    ZTZG-63Z 0.8~4.0 0.8~3.0 20~70
    ZTZG-76Q φ25.4~76.2 0.8~2.5

    20X20~60X60

    30X15~80X40

    0.8~2.0 30~90
    ZTZG-76 0.8~3.5 0.8~3.0 30~80
    ZTZG-76Z 0.8~4.0 0.8~3.5 20~70
    ZTZG-90Q φ30~90 0.8~3.0

    25X25~70X70

    30X20~80X40

    0.8~2.5 30~90
    ZTZG-90 0.8~3.5 0.8~3.0 30~80
    ZTZG-90Z 0.8~4.0 0.8~3.5 20~70
    ZTZG-100Q φ31.8~101.6 1.0~3.0

    25X25~80X80

    30X20~100X50

    1.0~2.5 30~90
    ZTZG-100 1.0~3.75 1.0~3.0 30~80
    ZTZG-100Z 1.0~4.25 1.0~3.5 20~70
    ZTZG-114Q φ35~114.3 1.0~3.0

    30X30~90X90

    40X20~120X60

    1.0~2.5 30~80
    ZTZG-114 1.2~4.25 1.2~4.0 20~70
    ZTZG-127Q φ40~127 1.2~3.5

    30X30~100X100

    40X20~120X80

    1.2~3.0 20~70
    ZTZG-127 1.5~5.0 1.5~4.5 15~60
    ZTZG-140Q φ50~141.3 1.2~4.0

    40X40~110X100

    50X30~150X70

    1.2~3.5 15~60
    ZTZG-140 1.5~5.5 1.5~5.0 15~60
    ZTZG-168Q φ60~168.3 1.5~5.0

    50X50~130X130

    60X40~160X80

    1.5~4.5 15~50
    ZTZG-168 2.0~6.0 2.0~5.5 15~50
    ZTZG-168Z φ76.2~168.3 2.5~8.0

    60X60~130X130

    80X40~160X80

    2.5~7.0 10~40
    ZTZG-219Q φ89~219.1 2.0~6.0

    70X70~160X160

    100X50~200X100

    2.0~5.5 10~40
    ZTZG-219 3.0~8.0 3.0~7.5 10~40
    ZTZG-219 4.0~10.0 4.0~9.0 10~40
    ZTZG-273 φ114.3~273 4.0~10.0

    90X90~200X200

    120X60~260X130

    4.0~9.0 10~40
    ZTZG-273Z 4.5~12.0 4.5~11.0

    10~35

    Classic Case

    ZTZG-168 ERW tube mill line in Palestinian

    OD 32-76mm Carbon Steel Pipe Production Line

    22 Steel pipe making lines in Iran

    OD 32-76mm Carbon Steel Pipe Production Line

    ZTZG-76H Roller quickly change type ERW tube mill machine in Cambodia

    OD 32-76mm Carbon Steel Pipe Production Line

    Our Services

    The sample service

    1.We can send you the video of the running machine.

    2.You are welcome to come to visit our factory,and see the machine running.

    Customized service

    1.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

    After-sales service

    1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

    2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

    3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

    4.We provide one year warranty

    5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese

    6 .24 hours for engineer response.

    7 .12 Months guarantee and life-long technical support.

    8.Your business relationship with us will be confidential to any third party.

    9. Good after-sale service offered, please get back to us if you got any questions.

    Quality Control

    We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.

    FAQ

    Q:Are you manufacturer?
    A:Yes,we are manufacturer.We have our own technical team.Welcome to visit us.
    Q:What kind o f payment term you can do?
    A:We are flexible about payment terms,we can also help you on financing,please contact us for details.
    Q:What info you need before you make the proposal?
    A:The pipe diameter and thickness range which you need or the profile drawings,
    material information,your special requirements.
    Q: What should I do if I just start a new business?
    A:Contact us immediately ,we provide free consultant pre-sales service.Also we
    can help you to solve the material(steel coil)purchase,worker train,international market price.
    Q:How do you do QA?
    A:We have special team do strict QA,this is our strengths:
    (1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no

    leak.
    (2)Every shaft will be inspected for the centering jumpiness.
    (3)Every roller will be checked to make sure its in the range of tolerance critical parts

    will be inspected for all dimensions.
    Q:Why I should choose you,what are the differences between you and other

    Chinese suppliers?
    A:We are concentrate on this area for more than ten years.

    Pre-sale:If the customer can not provide detailed technical information,our engineer

    will go to the customer’s plant,draw precise drawings after measuring unit,to meet

    your production requirement.

    After-sale:Our strong team of engineers and experienced technicians can provide

    you with installation instructions,operating instructions,quality control guidance
