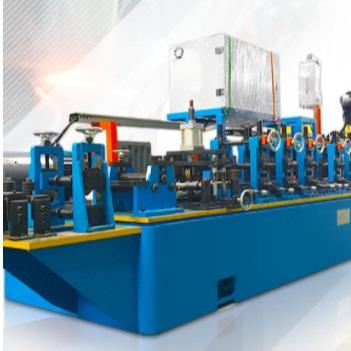

Tig Welded Machine To Make Square Pipe Metal Tube Pipe Making
Machine
Product Description
Summary of welding pipe machine
The welding pipe machine can be recommended from coil hanging to
pipe packaging, which consisted of complete pipe mill, rotating
capstan,single or double decoiler, staightener,shear&end
welder,accumulator,pipe mill section,flying saw and packaging.The welding pipe machine is mainly used to produce tube for heat
exchanger,refrigerator, frame of car,bicycle ect,fitness
equipment,furniture,chiller,petrol transmission and so on.
What is the Features of welding pipe machine?
1. It supports many kinds of material like carbon steel, GI and
others.
2.One welding pipe machine could make a large range of pipe sizes
by changing mold.
3.One welding pipe machine could be used to make square pipe, round
pipe by changing mold.
4.The pipe made by this kind of welding pipe machine could be used
in many areas like water tube, wire pipe and others
What is the working flow of welding pipe machine?
Steel Tape→→ Double-head uncoiler →→Strip-head Cutter and welder→→Spiral
accumulator→→Forming section(Flattening unit +Main driving unit
+Forming unit +Guide unit +High frequency induction welding unit
+squeeze roller)+ Removing External and internal burr→→Cooling unit →→ Sizing unit and straightener →→Flying saw under
computer-control →→ Run-out table
What is the specifications of welding pipe machine?
| name | welding pipe machine |
| a) Steel Pipe Specification | |
| Pipe diameter: | Ø16–Ø50mm |
| Pipe Thickness: | 0.5– 2.5mm |
| Square Pipe: | 14X14mm –40X40mm |
| Rectangle Pipe: | 10X20mm –40X50mm |
| Pipe Thickness: | 0.5–2.0mm |
| Pipe Length: | 6-9m |
| Length Tolerance: | 0-3mm |
| b) Steel Tape Specification | |
| Material: | Low Carbon steel (δb≤500Mpa, δs≤235Mpa) |
| Steel Tape: | |
| Inner diameter: | Φ580-Φ610mm |
| Outer diameter: | Φ900-1500mm |
| Strip steel width: | 60mm-200mm |
| Strip steel thickness | 0.5mm-2.5mm |
| The maximum weight: | 3.0 tons |
| c) Electricity | |
| Dynamic power: | AC380V±10%, 3phases, 50Hz±10% |
| Control Power: | AC220V±10%, one phase, 50Hz ±10% |
| Electric installed capacity: | appro 450KW |
| e) Cooling water | |
| Reservoir for High Frequency equipment: | 15 m³, one set |
| Reservoir for circulating cooling water: | 15 m³, one set |
| f) Compressed air | |
| Pressure: | 0.4Mpa |
| Flow: | 0.5m3/h |
| g) Line speed: | 30-90m/min |
Company Profie
Zhongtai Group is established in 2000, locates in Shijiazhuang. We
are an IS09001 certified pipe making machine and cold rolled
section steel forming machine manufacturer, reputed enterprise in
China's pipe making industry with the largest production capacity,
the most advanced technology and strongest competitiveness,one of
the executive directors of China Cold-formed Steel Structure
Association and one of China's top ten pipe making machinery
brands. There are three subsidiary companies respectively carry out
technology development, production processing and mold
manufacturing. Plant area 67000 m, with machining, heat treatment
and assembly plants.
Factory Tour
Trade Show
ZTZG Transport
FAQ
Q:Are you manufacturer?
A:Yes,we are manufacturer.We have our own technical team.Welcome to
visit us.
Q:What kind o f payment term you can do?
A:We are flexible about payment terms,we can also help you on
financing,please contact us for details.
Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the
profile drawings, material information,your special requirements.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales
service.Also we can help you to solve the material(steel coil)purchase,worker
train,international market price.
Q:How do you do QA?
A:We have special team do strict QA,this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to
guarantee there is no
leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of
tolerance critical parts
will be inspected for all dimensions.
Q:Why I should choose you,what are the differences between you and
other
Chinese suppliers?
A:We are concentrate on this area for more than ten years.
Pre-sale:If the customer can not provide detailed technical
information,our engineer
will go to the customer’s plant,draw precise drawings after
measuring unit,to meet
your production requirement.
After-sale:Our strong team of engineers and experienced technicians
can provide
you with installation instructions,operating instructions,quality
control guidance
