Straight Seam Pipe Welding Machine/Welded Steel Pipe Production
Tube Line
ERW89 Pipe Mill/Tube Mill
ERW89 high frequency longitudinal welded pipe production line /
pipe making machine / tube mill is designed to
produce welded pipes of 42mm-89mm in OD and 1.5mm-4.5mm in wall
thickness, as well as corresponding square and rectangular pipe.
Basic Technical Information of Welded Pipe Production Line
| Product&yield | Round Pipe | 42mm-89mm Thickness:1.5mm-4.5mm |
| Square & rectangle tube | 35mm×35mm -70mm×70mm Thickness:1.5mm-3.5mm |
| Length | 6m-12m Length Tolerance: ±3mm |
| Production Speed | 20-110 m/min |
| Production capacity | 22,000ton/year |
| Consumption | Mill installed capacity | 150 kw |
| Line Area | 72m(length) ×5.5m (width) |
| worker | 6-8 workers |
| Raw Material | Carbon Steel coil | Q235B(ASTM GR·D,σs 230) |
| Width | 130mm-280mm Thickness: 1.5mm-4.5mm |
| Coil ID | 550-610mm |
| Coil OD | Max 1600mm |
| Coil Weight | 4.0t |
Advantage
√ High production efficiency, line speed can be up to 110m/min.
√ High yielding, the machine works stably at a high speed.
√ Low wastage, low unit wastage and low production cost.
√ High accuracy, diameter error is only 0.5/100 of the pipe OD.
Application
GI, carbon steel and stainless steel tubes for metallurgy,
construction, transportation, machinery and vehicle industries.
Process Flow

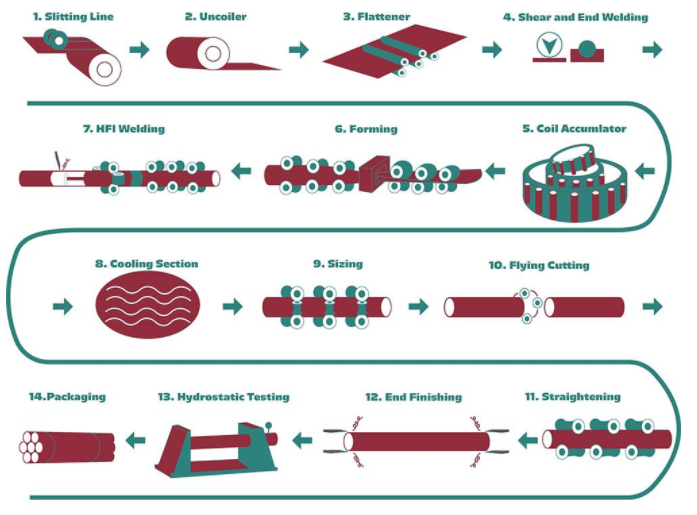

Steel Coil → Double-arm Uncoiler → Shear and End Cutting & Welding
→ Coil Accumulator → Forming (Flattening
Unit + Main Driving Unit + Forming Unit + Guide Unit + High
Frequency Induction Welding Unit + Squeeze Roller) →
Deburring → Water Cooling → Sizing & Straightening → Flying Saw
Cutting → Pipe Conveyor → Packaging → Warehouse
Storage
Forming process
| Round pipe | Cold roll forming process | Good roller design |
| ZTF forming technology | Reduce 60% roller cost, save roller changing time, increased
production efficiency |
| Square & rectangular pipe | General round-to-square process | Stable forming process |
| Round to square with turkshead | Good pipe quality, reach same wall thickness with round pipe |
| Directly squared forming technology | 1) Compare with round into square&rectangle forming way,this way
is better for the shape at the edge of cross section,comparatively,
semi-diameter of inner arc is Small,and the brim is flat,outlook is
regular. 2) the whole line load is low ,especially the sizing parts. 3) The width of steel strip is small about 2.4-3% than round into
square & rectangle,it can save the consume of raw material. 4) It adapt the multi-point bending way, avoid the axial force and
side abrasion, reduce the forming step while ensure the
quality,meanwhile it reduce the power wastage and roller abrasion. 5) It adapt the combined type roller on the most of the stands,it
realize that one set of roller can produce dozens of
square&rectangle pipe with different specification,it decrease
the store of roller,low the cost about 80% on roller, Fast the
bankroll turnover, short the time one new product design. |
