    20-120m/Min API Tube Mill

    Ask Lasest Price
    Brand Name : ZTZG
    Model Number : ERW140 to ERW720
    Certification : CE, ISO9000
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/year
    Delivery Time : 120 days
    • Product Details
    • Company Profile

    20-120m/Min API Tube Mill

    Product Introduction

    The unit produces high-strength oil and natural gas delivery pipes according to API standards of the American Petroleum Institute.


    Features of Production Line
    1. High strength, high toughness, and corrosion resistance of raw materials;
    2. The equipment has high strength, high precision and occupies large ground;
    3. The equipment has the characteristics of fast roll change without dismantling the main shaft and archway, and the common rate of roll mold is high;
    4. Multi-procedure inspection and flaw detection are required; The finishing quality of pipe end is required to be high.
    5. Production of high steel grade, large diameter, large wall thick steel pipe products.


    Machine Parameters

    Product&yieldRound Pipe60mm-720mm Thickness:1.5.0mm-22.0mm
    Length6m-12m Length Tolerance: ±3mm
    Production Speed20-50 m/min
    Production capacity30,000ton/year
    ConsumptionMill installed capacity220 kW
    Line Area85m(length) ×7m (width)
    worker6-8 workers
    Raw MaterialCarbon Steel coilQ235A, Q23b, 0Cr13, 1Cr17, 00Cr19Ni11, 1Cr18Ni9, 0Cr18Ni11Nb. Q345 L245 L290 X42 X46 X70 X80
    Width240mm-2200mm Thickness: 1.5mm-22.0mm
    Coil ID580-700mm
    Coil ODMax 1800mm
    Coil Weight

    25.0t

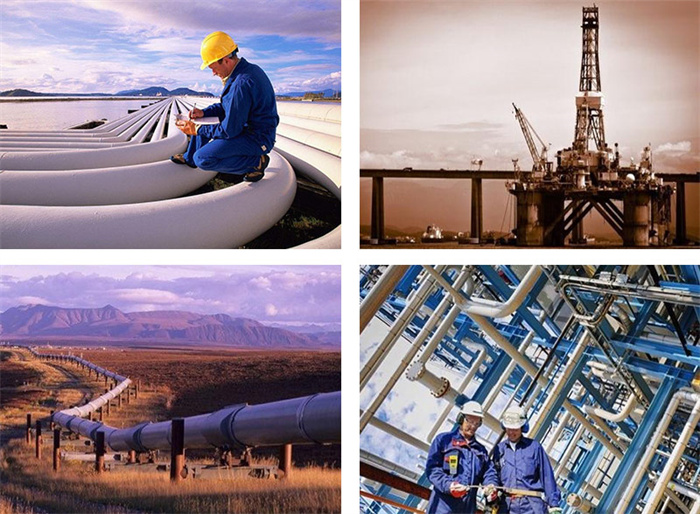

    Application

    Annual output of 200,000 tons of N80, P110 steel grade oil special pipe production capacity. As an important equipment for oil and gas drilling and transportation, the special oil pipe is widely used in the connection between drill collar and bit, drilling power transmission, borehole wall support, oil and gas transportation, etc. In recent years, with the continuous increase of oil and gas exploration and development in China, the demand for special oil pipes for medium and high grade and special technical requirements continues to grow.


    Machine Pictures


    ZTZG Company Introduction

    FAQ


    Q: Are you a manufacturer?
    A: Yes, we are a manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
    Q: What kind of payment term do you do?
    A: We do T/T.
    Q: What info do you need before giving me the price and proposal?
    A: Since we design individual machines based on our customer's requirements, we need your desired products' basic dimensions, including all the pipe diameter(or tube length), thickness range, usage, raw material steel grade, coil weight, and degree of automation.
    Q: What should I do if I just start a new business?
    A: Contact us immediately, we provide a free consultant for pre-sales service. Also, we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
    Q: How do you do QA?
    A: We have a special team to do strict QA, this is one of our strengths:
    (1)Every gearbox will be tested for 8 hours with oil inside to guarantee there is no leak.

    (2)Every shaft will be inspected for centering jumpiness.
    (3)Every roller will be checked to make sure it's in the range of tolerance critical parts will be inspected for all dimensions.
    Q: Why I should choose you? what are the differences between you and other Chinese suppliers?
    A: We are concentrating on pipe-making machines for more than 20 years. We have constructed many steady trading partners in Asia, Africa, the middle east, Europe, and South America throughout the years. Our innovative designed production line and every single unit of the production line are economical and practical.

    Model List
    ModelRound pipe
    mm
    Square pipe
    mm
    Thickness
    mm
    Working spead
    m/min
    ERW20Ф8-Ф206x6-15x150.3-1.5120
    ERW32Ф10-Ф3210x10-25x250.5-2.0120
    ERW50Ф20-Ф5015x15-40x400.8-3.0120
    ERW76Ф32-Ф7625x25-60x601.2-4.0120
    ERW89Ф42-Ф8935x35-70x701.5-4.5110
    ERW114Ф48-Ф11440x40-90x901.5-4.565
    ERW140Ф60-Ф14050x50-110x1102.0-5.060
    ERW165Ф76-Ф16560x60-130x1302.0-6.050
    ERW219Ф89-Ф21970x70-170x1702.0-8.050
    ERW273Ф114-Ф27390x90-210x2103.0-10.045
    ERW325Ф140-Ф325110x110-250x2504.0-12.740
    ERW377Ф165-Ф377130x130-280x2804.0-14.035
    ERW406Ф219-Ф406170x170-330x3306.0-16.030
    ERW508Ф273-Ф508210x210-400x4006.0-18.025
    ERW660Ф325-Ф660250x250-500x5006.0-20.020
    ERW720Ф355-Ф720300x300-600x6006.0-22.020
