Steel Belt Storage Device Horizontal Disc Looper Plate Type
Accumulator Machine
Product Description
This machine is used in the welded pipe production line, between
the shear welding machine and the main machine (forming machine).
Its function is to store enough steel strips. When the current roll
is almost used up, allow enough time for the next roll to complete
the shear butt welding with the previous roll, so as to ensure the
continuous production of the main machine.
The Whole Process of Pipe Production Line
Steel coil -- uncoiling -- shearing and butt-welding -- material
accumulating -- non-power leveling -- forming -- high frequency
welding -- removing burrs outside of weld seam -- cooling -- sizing
-- roughly straightening --fixed length cutting -- finished pipe --
run-out table

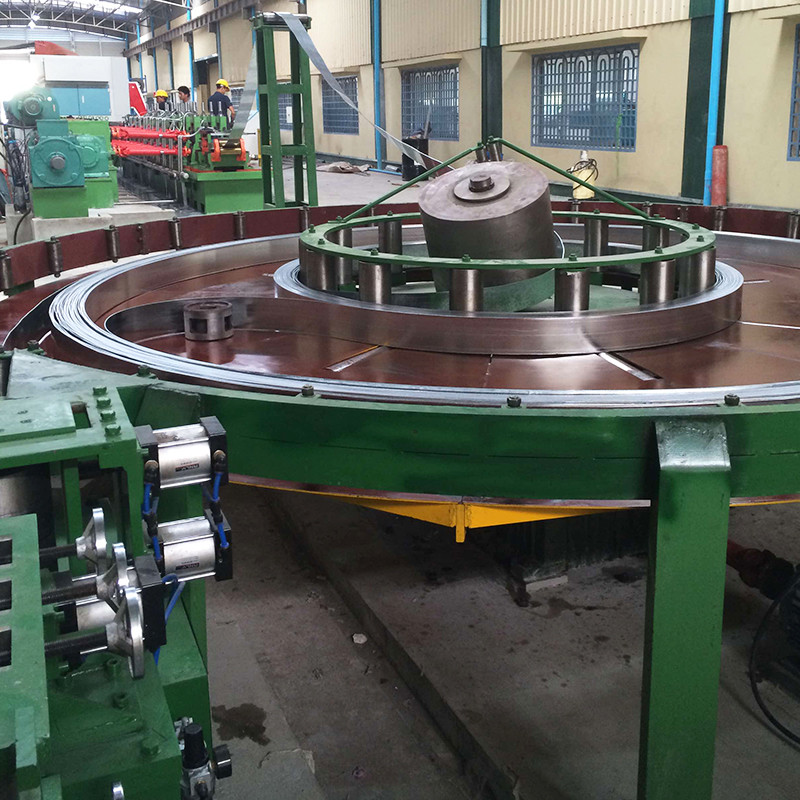

Product Display
Model List
| No. | Model | Steel Strip Width | Steel Strip Thickness | Feeding Speed(m/min) | Length(m) | Motor(Kw) |
| 1 | φ2.5M | 60~180mm | 0.5~2.0mm | 160 | 15 | 7.5 |
| 2 | φ3.5M | 60~230mm | 0.8~2.5mm | 160 | 15 | 7.5 |
| 3 | φ4.0M | 60~350mm | 0.8~3.0mm | 160 | 18 | 11 |
| 4 | φ4.2M | 80~400mm | 0.8~3.5mm | 160 | 18 | 15 |
| 5 | φ4.5M | 100~400mm | 0.8~4.0mm | 160 | 18 | 18.5 |
| 6 | φ4.8M | 100~450mm | 1.0~4.5mm | 160 | 18 | 18.5 |
| 7 | φ5.0M | 120~500mm | 1.0~5.0mm | 160 | 23 | 22 |
| 8 | φ5.5M | 150~600mm | 1.0~5.5mm | 160 | 23 | 30 |
| 9 | φ6.0M | 180~700mm | 1.2~6.0mm | 160 | 23 | 30 |
| 10 | φ8.0M | 200~800mm | 1.5~8.0mm | 120 | 43 | 55 |
| 11 | φ10M | 300~800mm | 2.0~10.0mm | 120 | 43 | 75 |
| 12 | φ12M | 500~900mm | 5.0~12.0mm | 100 | 48 | 110 |
| 13 | φ14M | 500~900mm | 5.0~14.0mm | 100 | 48 | 132 |
| 14 | φ16M | 500~1000mm | 6.0~16.0mm | 100 | 55 | 160 |
We can design according to the customer's demand, please feel free
to contact us if you have any questions.
About Us
Q:Are you manufacturer?
A:Yes,we are manufacturer. We have 4 factories ( Machining,
Assembling, Heat treatment, and Moulding ). We also have our own
R&D department. Welcome to visit us.
Q:What kind of payment term do you do?
A: We do T/T and L/C.
Q:What info do you need before giving me the price and proposal?
A: Since we design individual machine based on our customer's
requirement, we need your desired products' basic dimension,
including all the pipe diameter(or tube length), thickness range ,
usage, raw material steel grade, coil weight, and degree of
automation.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant for pre-sales
service .Also we can help you solve the raw material (steel coil)
purchase, worker training, international market price, and more.
Q:How do you do QA?
A:We have special team to do strict QA,this is one of our
strengths:
(1)Every gear box will be tested for 8 hours with oil inside to
guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of
tolerance critical parts will be inspected for all dimensions.
Q:Why I should choose you? what are the differences between you and
other Chinese suppliers?
A:We are concentrate on pipe making machines for more than 20
years. We have constructed many steady trading partners in
Asia,Africa, middle east, Europe, and South America throughout the
years. Our innovative designed production line and each single unit
of the production line are not only economical but also practical.
