Products Description

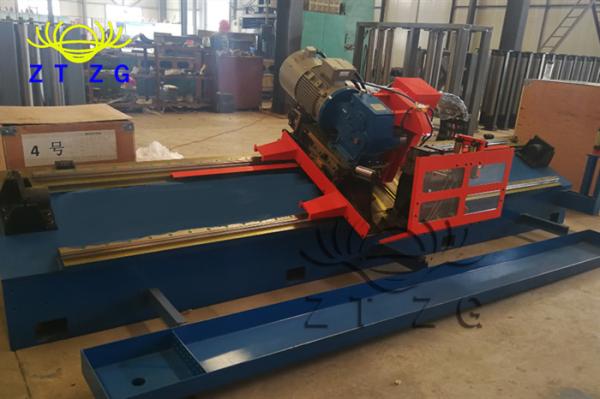

Flying saw is used to cut tube during static and motion status in
continuous production into the desired length. It utilizes a speed
calculating cart to synthesize with the moving speed of the steel
tube and then fixed cut the tube. It can cut both round pipes and
special tubes.
The microcomputer fixed-length flying saw machine is controlled by
a high-precision fixed-length microcomputer designed by ARM
high-end CPU. The software is multi-functional, high-end, and
flexible. It is completely free of mechanical shock and more than
doubles the service life of the machine.
Name | Computer Controlled Flying Saw |
Material | Carbon Steel, High Strength Steel |
Square Size | 38-100mm |
Rectangle Size | 50*100mm |
Round Size | 30-80mm |
Thickness | 1.2-4.5mm |
Pipeline Max. speed | 120m/min |
Main configuration Cold Flying Saw
1)Easy in installation and maintenance, Contor Engineer visit site
help to install and teach how to use.
2) Adopting advanced world famous brand components in pneumatic
parts, electric parts, and operation parts.
3) Lower noise, burr-free cutting, more safety for the operator,
save costs and material.
4) Running in a high automatization and intellectualization, no
pollution
5) New Function: Remote Control system, solve the problem in time.
Our cold flying saws can ensure the quality of cutting, pipe
incision hairless stubble burr. In addition to the ordinary round,
rectangular, square pipe, we can also cut special-shaped pipe.
| Model | Round pipe
mm | Square pipe
mm | Thickness
mm | Working speed
m/min |
| ZTZG20 | 8-420 | 6x6-15x15 | 0.3-1.5 | 180 |
| ZTZG32 | 10-032 | 10x10-25x25 | 0.5-2.0 | 180 |
| ZTZG50 | 20-$50 | 15x15-40x40 | 0.8-3.0 | 180 |
| ZTZG76 | 32-$76 | 25x25-60x60 | 1.2-4.0 | 180 |
| ZTZG89 | 42-$89 | 35x35-70x70 | 1.5-4.5 | 180 |
| ZTZG114 | $48-114 | 40x40-90x90 | 1.5-4.5 | 120 |
| ZTZG140 | 60-4140 | 50x50-110x110 | 2.0-5.0 | 120 |
| ZTZG165 | 76-$165 | 60x60-130x130 | 2.0-6.0 | 120 |
| ZTZG219 | 89-o219 | 70x70-170x170 | 2.0-8.0 | 90 |
| ZTZG273 | 114-4273 | 90x90-210x210 | 3.0-10.0 | 90 |
| ZTZG325 | 140-$325 | 110x110-250x250 | 4.0-12.7 | 90 |
| ZTZG377 | 165-o377 | 130x130-280x280 | 4.0-14.0 | 90 |
| ZTZG406 | $219-0406 | 170x170-330x330 | 6.0-16.0 | 90 |
| ZTZG508 | $273-0508 | 210x210-400x400 | 6.0-18.0 | 70 |
| ZTZG660 | 325-$660 | 250x250-500x500 | 6.0-20.0 | 70 |
| ZTZG720 | $355-$720 | 300x300-600x600 | 6.0-22.0 | 70 |
FAQ
Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have 4 factories ( Machining,
Assembling, Heat treatment, and Moulding ). We also have our own
R&D department. Welcome to visit us.
Q: What kind of payment term do you do?
A: We do T/T.
Q: What info do you need before giving me the price and proposal?
A: Since we design individual machines based on our customer's
requirements, we need your desired products' basic dimensions,
including all the pipe diameter(or tube length), thickness range,
usage, raw material steel grade, coil weight, and degree of
automation.
Q: What should I do if I just start a new business?
A: Contact us immediately, we provide a free consultant for
pre-sales service. Also, we can help you solve the raw material
(steel coil) purchase, worker training, international market price,
and more.
Q: How do you do QA?
A:We have a special team to do strict QA, this is one of our
strengths:
(1)Every gearbox will be tested for 8 hours with oil inside to
guarantee there is no leak.
(2)Every shaft will be inspected for centering jumpiness.
(3)Every roller will be checked to make sure it's in the range of
tolerance critical parts will be inspected for all dimensions.
Q: Why I should choose you? what are the differences between you
and other Chinese suppliers?
A: We are concentrating on pipe-making machines for more than 20
years. We have constructed many steady trading partners in Asia,
Africa, the middle east, Europe, and South America throughout the
years. Our innovative designed production line and every single
unit of the production line are economical and practical.
