    400KW 500KW Solid State High Frequency Welder

    ERW Steel Pipe Soldering Machine Welded Tube Solid State High Frequency Welder​


    Product Parameter


    Design parameters of the high - frequency welding machineRated output power:400/500kW
    Rated DC voltage:UdN= 235V
    Rated DC current:IDN =1070/1330A
    Efficiency:η> 85%
    Output frequency:f= 200 - 300kHz
    Circulation of soft water cooling systemWorking water pressure:0.32Mpa
    Working water flow rate:25m
    Heat exchange area:12m
    Composition of the solid - state high - frequency welding machineRectifier cabinet1 set
    Inverter cabinet1 set
    Water ex-changer1 set
    Operation panel1 set
    Adjustment mechanism1 set
    Output confluence row1 set

    Structure

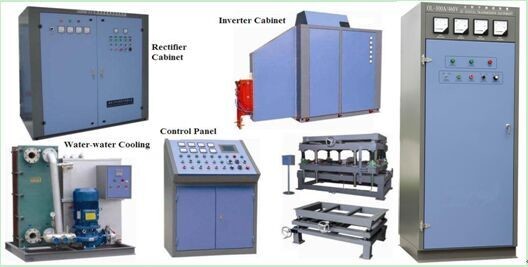

    The whole set of solid state HF welder comprises of rectifying cabinet, inverter and output cabinet, connecting optical fiber, closed loop water cooling system, central operator console, mechanical adjustment device, etc.


    400KW 500KW Solid State High Frequency Welder


    Usage


    It is used to be a high performance-heating unit controlled by computer for welding steel pipe.


    Product Details


    1.Switch Rectifying Cabinet


    We integrate the switch gear cabinet part and rectifier part, besides the functions of switch cabinet, this design also has rectifying control functions on solid-state H.F. welders.

    Install incoming disconnect switch ,incoming current meter, voltage meter(switchable)and incoming voltage indicating light.

    Install 3-phase full-controllable thyristor rectifying bridge to achieve power regulation of H.F. welders.

    Install flat wave reactor, flat wave capacitor and filter to increase flat wave coefficient.


    2. Invert output cabinet


    We adopt matching transformer to realize power combination, also we adopt sub-resonance, no-welding transformer output mode and make resonance directly by tank resonance capacitor(low voltage)and inductor to achieve steel pipe welding power transmission by output lead.

    Use sealed box and install overhead air conditioning.

    3. Central console


    The console achieves remote control and power regulation of solid-state H.F. welder, installed with LCD; also it has indicators of armature voltage, field voltage on DC speed regulation cabinet and indicators of DC voltage, DC current on welder. Installation of power-speed closed loop control function is optional. The console has design difference according to different types and quantities of matching DC speed regulation cabinet.


    4. Mechanical adjusting equipment


    2-D adjustable bracket: for induction welding mode, applied with installation and adjustment of invert output cabinet, the inductor position can be adjusted manually.

    3-D adjustable bracket: for induction/contract welding mode, applied with installation and adjustment of inverter output cabinet, the inductor position can be adjusted by electric or manual.

    5. Circulation soft water cooling system (water-water cooler)


    The water -water cooling system is composed of heat exchanger with the adoption of the special corrugated structure which makes the soft water form sharp turbulent flow in order to strengthen heat exchange. The system holds the advantage of compact design, small area occupation, convenient dismounting and high efficiency of heat exchange. Only with the ability of heat exchange but not cooling, it is necessary to use external circulation system to accomplish the heat exchange.


    Model List


    Welding power (kw)Pipe OD (mm)Thickness (mm)Working Speed (m/min)
    10010-500.3-2.0≤120
    20032-761.0-3.0≤120
    25032-761.0-4.0≤120
    30045-1141.5-4.5≤90
    40045-1651.5-4.5≤80
    50076-2192.0-6.5≤80
    60076-2733.0-9.0≤60
    80089-3254.0-12.7≤50
    1000165-6106.0-19.0≤30
