High Speed Automatic Pipe Mill Line API Oil Steel Pipe Making
Machine
| | | | | |
| | | 0.6-2.2mm | 45kw * 1set | 60kw |
| | | 0.6-3.0mm | 90kw * 2sets | 200kw |
| | | 0.7-3.0mm | 132kw * 2sets | 300kw |
| | | 1.0-3.0mm | 132kw * 2sets | 300kw |
| | | 1.0-3.5mm | 132kw * 2sets | 300kw |
| | 48.0-127mm | 1.0-4.0mm | 160kw+200kw | 400kw |
| | 76.0-165mm | 2.0-6.0mm | 200kw * 2sets | 500kw |
| | 89.0-219mm | 4.0-8.0mm | 200kw * 3sets | 500kw |
| | 140-325mm | 4.0-10.0mm | - | - |
| | 219-406mm | 6.0-16.0mm | - | - |
| | 273-508mm | 6.0-18.0mm | - | - |
PRODUCT INTRODUCTION
This high-frequency pipe production line is specialized equipment
to produce high frequency straight seam welded pipes for
structuralpipe and industrial pipe with Φ20mm~Φ500mm and wall
thickness of 0.4~18.0mm. Through optimization design, best
materials choice, andaccurately fabrication and rolls, the whole
line can be reached high precision and high speed. Within suitable
range of pipediameter and wall thickness, pipe production speed can
be adjusted.
Machine Details
Uncoiler
Function: Used for supporting strip steel coil and open it as strip steel so
as to make preparation for the pipe forming process Five-roll Flattener
Function: Flattener is for the flattening procedure of the strip steel cut
from steel coil, ensuring a steady dimension of strip steel with
minimum deficiency Shearing butt welding
2 Types: Automatic & Manual Function: Shear & end welder parallel cuts the head of the strip coming out
of uncoiler and the tail of the strip steel going into the
accumulator, and weld them together to form a smooth and continuous
line of strip steel
Strip Accumulator
Function: Accumulator is used to accumulate strip steel from uncoiler and
provide strip steel to forming unit. It leaves time for the shear &
end welder for strip welding and stores certain amount of strip for

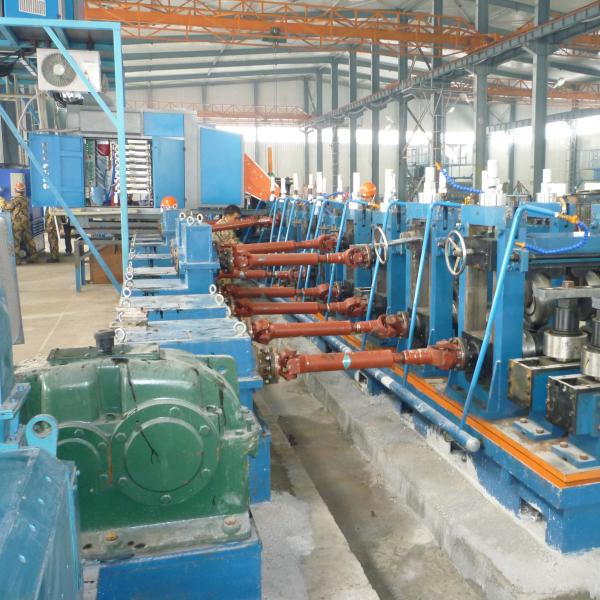

continuous forming Forming & Sizing Mill
Function: forming the tube from strip Advantage: >Advanced forming technical >One-stage molding platform
>Reliable quality gearbox >Siemens Beide motor
Forming & Sizing Mill
Function: The forming & sizing mill is the main equipment of the weld pipe
production line. It continuously reel the raw steel sheet into
desired size of cylinder or cuboid with precisely positioned roll
stands and mold and then weld it to pipe or tube with high
frequency welder.
Solid State High Frequency Welder
Function: The welder is used for welding edge heating with high-frequency
heating device. The whole set of solid-state H.F welder comprises
of rectifying cabinet, inverter, output cabinet, connecting optical
fiber, closed loop water cooling system, central operator console,
and mechanical adjustment device.
Zinc Spraying Machine
Function: It is used to spray zinc on the welding seam after scraping
external burr.
Saw Cutting System
Function: Flying saw is used to cut tube during static and motion status in
continuously production into desired length.
Automatic Stacking and Packing Machine
Function: Electrical control using PLC control, touch screen, to achieve
human-computer dialogue, manual, automatic between the free
conversion.
