L360 X70 Customized Machine For Oil Pipe Natural Gas Duct API Tube
Mill
Product Description
API pipe mill is specialized for manufacturing straight welded pipe
for petroleum and gas pipelines.
The whole production line adopts ‘ZTF’ forming technology.
Materials: L245,L360,A53,J55,N80 ,X42,X46,X52,X56,X60,X65,X70
Product Process
Scroll up→ Uncoiler→ Straightening end→ Flattener→ Auto-Shear and
Welding→ Horizontal Accumulator→ Strip UT→Forming(ZTF) → H.F.
induction welding→ Removing external burr→ Removing inner burr→
Burnishing→ Online Detection→ Seam annealer→ Air cooling→ Water
cooling→ Sizing→ Cut off→ Roll table→Flattening Test→ End-facing
and chamfering→ Hydrostatic test→Off-line UT test→ Drifter→
inspection→Weighing and length measurement → Coating & Printing→
Packing→ Warehouse
Product Parameter
| Product&yield | Round Pipe | 219mm-406mm Thickness: 6.0mm-16.0mm |
| Length | 6m-12m Length Tolerance: ±3mm |
| Production Speed | 30 m/min |
| Production capacity | 180,000ton/year |
| Consumption | Mill installed capacity | 880 kw |
| Line Area | 160m(length) ×16m (width) |
| worker | 6-8 workers |
| Raw Material | Carbon Steel coil | Carbon steel coil Q235B(ASTM GR·D,σs 230) |
| Width | 690mm-1280mm Thickness: 4.0mm-16.0mm |
| Coil ID | 580-760mm |
| Coil OD | Max 2300mm |
| Coil Weight | 35.0t |

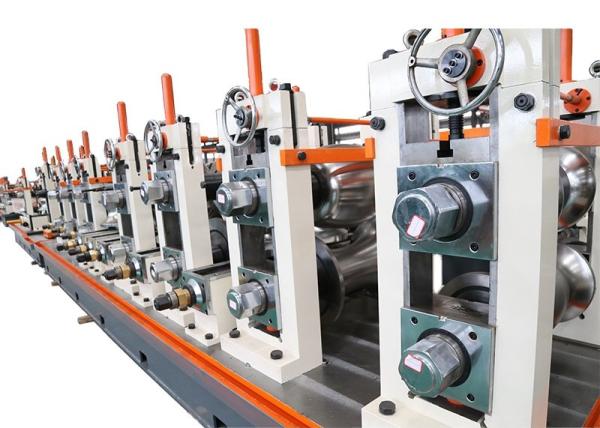

Product Display
About Us
Q:Are you manufacturer?
A:Yes,we are manufacturer. We have 4 factories ( machining,
assembling, heat treatment,and mould factory)And we have our own
R&D department. Welcome to visit us.
Q:What kind of payment term you can do?
A: We can accept T/T and L/C.
Q:What info you need before you make the proposal?
A:The pipe diameter , thickness range , usage, raw material steel
grade, coil weight and automatic degree.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant for pre-sales
service .Also we can help you to solve the raw material (steel
coil) purchase,worker training,international market price.
Q:How do you do QA?
A:We have special team to do strict QA,this is one of our
strengths:
(1)Every gear box will be tested for 8 hours with oil inside to
guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of
tolerance critical parts will be inspected for all dimensions.
Q:Why I should choose you,what are the differences between you and
other Chinese suppliers?
A:We are concentrate on this industry for more than 20 years,and
especially in pipe making machines. Our pipe making machine line
directly export to Russia,Vietnam,lndia,Indonesia,and many other
countries in Asia, Africa, middle east and South America.
