    500kw Water Cooled High Frequency Pipe Welding Machine 60m/min Automatic

    Ask Lasest Price
    Brand Name : ZTZG
    Model Number : 500kw
    Certification : ISO9001 CE SGS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 200 sets/year
    Delivery Time : 120 days
    • Product Details
    • Company Profile

    500kw Water Cooled High Frequency Pipe Welding Machine 60m/min Automatic

    500kw Water Cooled High Frequency Pipe Welding Machine 60m/min Automatic

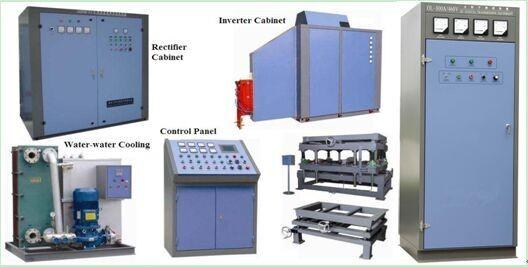

    Main Parts


    Solid state H.F welder is specially designed for straight seam welding. It adopts high power components of US IR IRFP460 MOSFET and Germany IXYS Company DSEI60-06A rapid recovery diode. The high power capacitor C and inductor coil L compose current-mode parallel upper-voltage resonance circuit, which doesn’t need output transformer. Thus, it not only improves the efficiency, but also increases the reliability of the welder.It includes Inverter Unit, DC power Unit, Central Control Unit, Water-water(air-water) cooling Unit, Rectifier Isolaiton Transformer.


    Technical advantages


    1. Varactor Technology of induction welding ensures wide load matching range.
    2. Self-developed unique control structures of the circuit design leading to stable equipment operation.
    3. DC Power supply with constant power output has a soft-start function to prevent the impact of the circuit.
    4. Central control unit achieves centralized display and easy device operation.
    5. Equipment cooling system adopts plate heat exchangers. Small footprint, long life and easy maintenance.

    .

    Process flow



    Uncoiling →Shear & Welder → Accumulator → Forming → H.F. Induction Welding → Burr Removing→ Cooling → Sizing → Cutting → Run out table → Checking & Collecting → Accessing Warehouse


    Option configuration



    Speed and power closed-loop control, Ethernet networking technology, and cloud control technology.




    Our company

    500kw Water Cooled High Frequency Pipe Welding Machine 60m/min Automatic500kw Water Cooled High Frequency Pipe Welding Machine 60m/min Automatic500kw Water Cooled High Frequency Pipe Welding Machine 60m/min Automatic500kw Water Cooled High Frequency Pipe Welding Machine 60m/min Automatic

    FAQ


    Q: Are you a manufacturer?
    A: Yes, we are a manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
    Q: What kind of payment term do you do?
    A: We do T/T.
    Q: What info do you need before giving me the price and proposal?
    A: Since we design individual machines based on our customer's requirement, we need your desired products' basic dimensions, including all the pipe diameter(or tube length), thickness range, usage, raw material steel grade, coil weight, and degree of automation.
    Q: What should I do if I just start a new business?
    A: Contact us immediately, we provide a free consultant for pre-sales service. Also, we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
    Q: How do you do QA?
    A:We have a special team to do strict QA, this is one of our strengths:
    (1)Every gearbox will be tested for 8 hours with oil inside to guarantee there is no leak.

    (2)Every shaft will be inspected for centering jumpiness.
    (3)Every roller will be checked to make sure it's in the range of tolerance critical parts will be inspected for all dimensions.
    Q: Why I should choose you? what are the differences between you and other Chinese suppliers?
    A: We are concentrating on pipe-making machines for more than 20 years. We have constructed many steady trading partners in Asia, Africa, the middle east, Europe, and South America throughout the years. Our innovative designed production line and every single unit of the production line are economical and practical.
