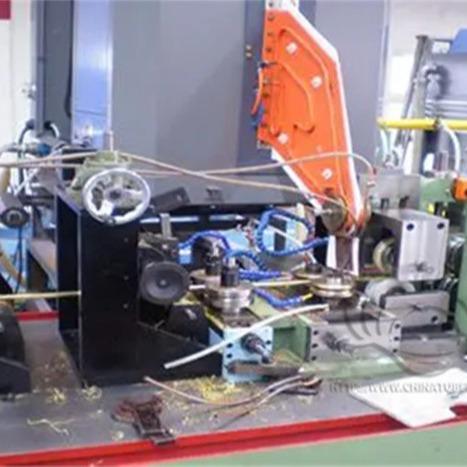

200KW Pipe And Tube Solid-State HF Welding


Technical Features

1.Display instrument digitization
The rectifying cabinet panel is equipped with a multi-function digital meter, which has three phase input line voltage, three-phase line current, power factor, reactive power, active power, power, DC voltage, DC current and other parameters, and can be controlled, displayed and recorded through communication far to the upper computer.

2.The high frequency voltmeter and the ammeter touch screen display of the operation console
The welding machine and the operating table are connected by communication, and the resonant frequency of high frequency, active, reactive, power, DC voltage, DC current, armature voltage and armature current are displayed in the touch screen of the operating table.

Main Parts

The whole set of solid state HF welder comprises of rectifying cabinet, inverter and output cabinet, connecting optical fiber, closed loop water cooling system, central operator console, mechanical adjustment device, etc.

Technological Index

Usage

It is used to be a high performance-heating unit controlled by computer for welding steel pipe.
