SS32 Galvanized Pipe Production Line High Precision And Accuracy
Durable Equipment Stainless Steel Tube Mill
Product Description
Stainless steel pipe making machine is designed for manufacturing
stainless steel straight welded pipe for metallurgy, construction,
transportation, machinery and vehicle industries. To be specific,
the stainless steel pipe production line can produce round pipe,
square and rectangular tube through cold rolled forming and TIG welding technology.
This pipe making machine adopts long steel strip as the material to
manufacture steel pipes according to requested size by cold rolled
forming and argon arc welding method.
Pipe Material
Stainless Steel(SS,STS), Carbon steel(cs, ms, iron, erw),
Galvanized(Gi, pregalvanzied), Mild Steel(Black pipe)
Technical flow
Scrolling up→ Forming → Welding→ Grinding → Sizing→ Straightening→
Cutting → Run out table →Inspecting→ Packing→ Warehouse

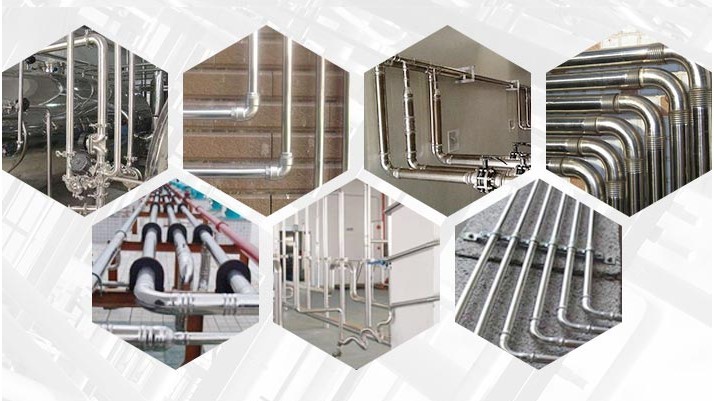

Application
1.Decorative and Ornamental Area: Furniture(office chairs,frames of
the chairs and tables, brush handle)
2.Building construction(balcony, stair, gate, house balcony Hand
Railings, stairs, house curtains, curtain rods, bath showers)
3.Public facility(geyser tank assembly)
4.Industry Area: Water,Heat exchange, Automobile
Product Parameter
| Mill capacity | Round Pipe | Ф6-32mm Thickness: 0.2-1.0mm |
| Square & rectangle tube | 5*5-25*25mm Thickness: 0.2-1.0mm |
| Speed | 0-15m/min |
| Electrical element | Drive Motor | 11 kw Siemens China |
| Inverter | Delta Brand |
| MCB | Schneider |
| Other | Grinding System | Manual |
| H shaft | 50mm |
| V shaft | 30mm |
Model List
| Model | Round pipe mm | Square pipe mm | Thickness mm | Working spead m/min |
| SS25 | Ф6-Ф25 | 5x5-20x20 | 0.2-0.8 | 10 |
| SS32 | Ф6-Ф32 | 5x5-25x25 | 0.2-1.0 | 10 |
| SS51 | Ф9-Ф51 | 7x7-40x40 | 0.2-1.5 | 10 |
| SS64 | Ф12-Ф64 | 10x10-50x50 | 0.3-2.0 | 10 |
| SS76 | Ф25-Ф76 | 20x20-60x60 | 0.3-2.0 | 10 |
| SS114 | Ф38-Ф114 | 30x30-90x90 | 0.4-2.5 | 10 |
| SS168 | Ф76-Ф168 | 60x60-130x130 | 1.0-3.5 | 10 |
| SS219 | Ф114-Ф219 | 90x90-170x170 | 1.0-4.0 | 10 |
| SS325 | Ф219-Ф325 | 170x170-250x250 | 2.0-8.0 | 3 |
| SS426 | Ф219-Ф426 | 170x170-330x330 | 3.0-10.0 | 3 |
| SS508 | Ф273-Ф508 | 210x210-400x400 | 4.0-12.0 | 3 |
Finished Pipes
