Structures:
● Single side/double side uncoiler
● Strip butt welding equipment: manual welding table or shear and
butt welding machine
● 3-stage roller tube making machine
Forming section

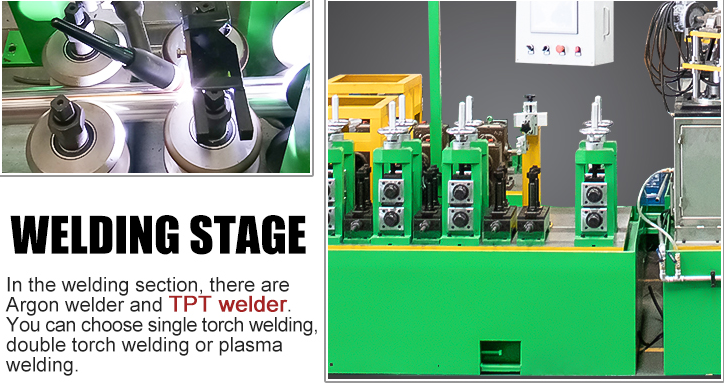

Welding section
Sizing section
● Cooling section
● Weld bead grinder
Equipment for inside weld bead control (Optional )
In-line bright annealing equipment (Optional)
● Auto-cut off
● Run out table
● Electric control system
● TIG welding machine + cooling equipment/ Plasma welding machine +
cooling equipment
● Unloading shelf
● Rolls made of Cr12MoV/SKD-11
Production Process
Uncoiler-Forming-Welding-Grinding-Sizing-Cutting
Product Parameter
Mill capacity | Round Pipe | Ф42-89mm Thickness: 1.0-3.5mm |
Square & rectangle tube | 35x3520-70*70mm Thickness: 1.0-3.5mm |
Speed | 0-15m/min |
Electrical element | Drive Motor | 11 kw Siemens China |
Inverter | Delta Brand |
MCB | Schneider |
Other | Grinding System | Manual |
H shaft | 50mm |
V shaft | 30mm |
FAQ
Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have 4 factories ( Machining,
Assembling, Heat treatment, and Moulding ). We also have our own
R&D department. Welcome to visit us.
Q: What kind of payment term do you do?
A: We do T/T and L/C.
Q: What info do you need before giving me the price and proposal?
A: Since we design individual machines based on our customer's
requirements, we need your desired products' basic dimensions,
including all the pipe diameter(or tube length), thickness range,
usage, raw material steel grade, coil weight, and degree of
automation.
Q: What should I do if I just start a new business?
A: Contact us immediately, we provide a free consultant for
pre-sales service. Also, we can help you solve the raw material
(steel coil) purchase, worker training, international market price,
and more.
Q: How do you do QA?
A: We have a special team to do strict QA, this is one of our
strengths:

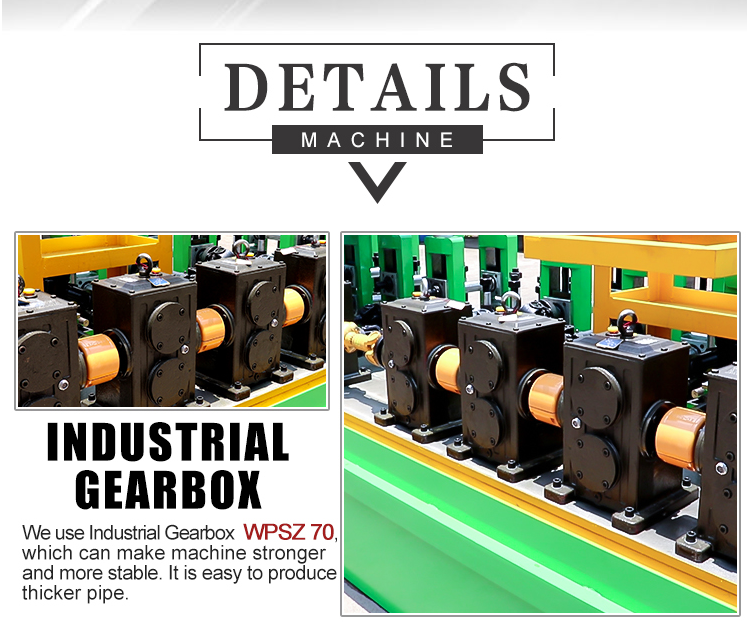

(1)Every gearbox will be tested for 8 hours with oil inside to
guarantee there is no leak.
(2)Every shaft will be inspected for centering jumpiness.
(3)Every roller will be checked to make sure it's in the range of
tolerance critical parts will be inspected for all dimensions.
Q: Why I should choose you? what are the differences between you
and other Chinese suppliers?
A: We are concentrating on pipe-making machines for more than 20
years. We have constructed many steady trading partners in Asia,
Africa, the Middle East, Europe, and South America throughout the
years.
ur, innovatively designed production line and every single unit of
the production line are economical and practical.
