Inox Steel Pipe Production Line Rustless Material Long Lasting

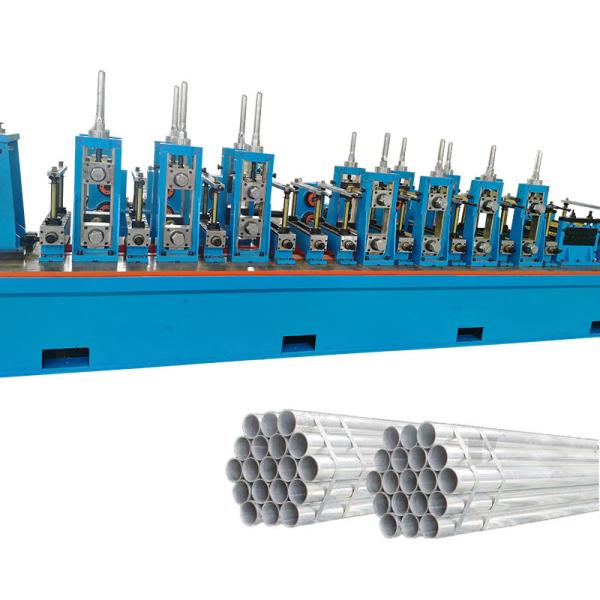

SS508 Stainless Steel Tube Mill
Product Description
This pipe making machine adopts long steel strip as the material to
manufacture steel pipes according to requested size by cold rolled
forming and argon arc welding method.
Stainless steel pipe making machine is designed for manufacturing
stainless steel straight welded pipe for metallurgy, construction,
transportation, machinery and vehicle industries. To be specific,
the stainless steel pipe production line can produce round pipe,
square and rectangular tube through cold rolled forming and TIG welding technology.
Pipe Material
Stainless Steel(SS,STS), Carbon steel(cs, ms, iron, erw),
Galvanized(Gi, pregalvanzied), Mild Steel(Black pipe)
Technical Flow
Scrolling up→ Forming → Welding→ Grinding → Sizing→ Straightening→
Cutting → Run out table →Inspecting→ Packing→ Warehouse
Application
1.Decorative and Ornamental Area: Furniture(office chairs,frames of
the chairs and tables, brush handle)
2.Building construction(balcony, stair, gate, house balcony Hand
Railings, stairs, house curtains, curtain rods, bath showers)
3.Public facility(geyser tank assembly)
4.Industry Area: Water,Heat exchange, Automobile
Product Parameter
Mill capacity
| Round Pipe | Ф273-508mm |
| Square & rectangle tube | 210x210-400x400mm |
| Speed | 3m/min max |
| Thickness | 4.0-12.0mm |
| Electrical element | Drive Motor | 60kw+60kw |
Other
| Mold Material | Cr12MoV , D2, SKD61 |
| H shaft OD | 160mm |
| V shaft OD | 120mm |
Model List
| Model | Round pipe mm | Square pipe mm | Thickness mm | Working spead m/min |
| SS25 | Ф6-Ф25 | 5x5-20x20 | 0.2-0.8 | 10 |
| SS32 | Ф6-Ф32 | 5x5-25x25 | 0.2-1.0 | 10 |
| SS51 | Ф9-Ф51 | 7x7-40x40 | 0.2-1.5 | 10 |
| SS64 | Ф12-Ф64 | 10x10-50x50 | 0.3-2.0 | 10 |
| SS76 | Ф25-Ф76 | 20x20-60x60 | 0.3-2.0 | 10 |
| SS114 | Ф38-Ф114 | 30x30-90x90 | 0.4-2.5 | 10 |
| SS168 | Ф76-Ф168 | 60x60-130x130 | 1.0-3.5 | 10 |
| SS219 | Ф114-Ф219 | 90x90-170x170 | 1.0-4.0 | 10 |
| SS325 | Ф219-Ф325 | 170x170-250x250 | 2.0-8.0 | 3 |
| SS426 | Ф219-Ф426 | 170x170-330x330 | 3.0-10.0 | 3 |
| SS508 | Ф273-Ф508 | 210x210-400x400 | 4.0-12.0 | 3 |
Mode of Transportation
Company Information
FAQ
Q:Are you manufacturer?
A:Yes,we are manufacturer. We have 4 factories ( Machining,
Assembling, Heat treatment, and Moulding ). We also have our own
R&D department. Welcome to visit us.
Q:What kind of payment term do you do?
A: We do T/T and L/C.
Q:What info do you need before giving me the price and proposal?
A: Since we design individual machine based on our customer's
requirement, we need your desired products' basic dimension,
including all the pipe diameter(or tube length), thickness range ,
usage, raw material steel grade, coil weight, and degree of
automation.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant for pre-sales
service .Also we can help you solve the raw material (steel coil)
purchase, worker training, international market price, and more.
Q:How do you do QA?
A:We have special team to do strict QA,this is one of our
strengths:
(1)Every gear box will be tested for 8 hours with oil inside to
guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of
tolerance critical parts will be inspected for all dimensions.
Q:Why I should choose you? what are the differences between you and
other Chinese suppliers?
A:We are concentrate on pipe making machines for more than 20
years. We have constructed many steady trading partners in
Asia,Africa, middle east, Europe, and South America throughout the
years. Our innovative designed production line and each single unit
of the production line are not only economical but also practical.
Please feel free to contact me. Have a nice day!
