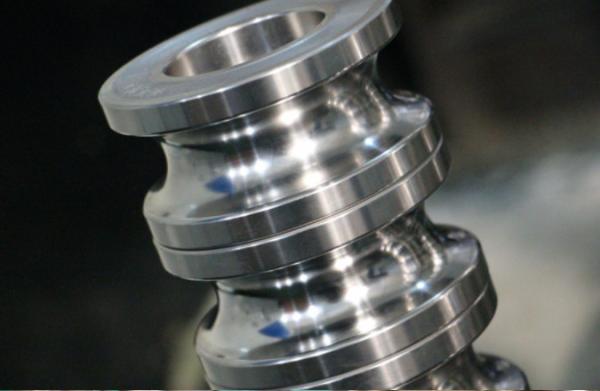

Cr12Mov Oval Pipe Forming Roller

    Buy cheap Cr12Mov Oval Pipe Forming Roller from wholesalers

    Buy cheap Cr12Mov Oval Pipe Forming Roller from wholesalers
    • Buy cheap Cr12Mov Oval Pipe Forming Roller from wholesalers
    • Buy cheap Cr12Mov Oval Pipe Forming Roller from wholesalers
    • Buy cheap Cr12Mov Oval Pipe Forming Roller from wholesalers

    Cr12Mov Oval Pipe Forming Roller

    Ask Lasest Price
    Brand Name : ZTZG
    Model Number : 120
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/year
    Delivery Time : 120 days
    • Product Details
    • Company Profile

    Cr12Mov Oval Pipe Forming Roller

    MOULD ROLLER MATERIAL:Cr12MoV / SKD11 / D2 / Cu-Cr Alloy / Cr12 Etc

    PIPE SHAPE:Round/Square/Rectangle/Special-shaped Etc

    HARDNESS:HRC 58—63

    Features: Standard tube shape, No Scratch, Long service life


    Welded pipe mould tube roller die is a necessary hardware accessory for manufacturing metal straight seam welded pipe. Under the action of the external force of the welded pipe mould, the steel coil is gradually forced to be cold rolled and curled in the arc of the tube roller, and then welded to obtain the closed welded pipe. The mold can be designed according to the customer's needs, such as round, elliptical, square, rectangular, special-shaped pipes, etc. the welded pipe mold is widely used in the production of decorative pipes, industrial pipes, ERW welded pipes and other pipes.


    Heat treatment way: There are four heat treatment way for your choose.

    (1) Vacuum Heat Treatment :HRC 61-63

    (2) Black treatment: HRC61-63

    (3) Nit riding treatment: HRC61-63

    (4) Vacuum Gas Quenching and Subzero Heat Treatment:HRC63-65

    Warm reminding: Tube diameter≥133mm, HRC:58-61

    Different heat treatment way , different price!


    Detail


    Product Description

    HRC65 High Precision SS Pipe Forming Roller Mould In Hot Sale

    The Roll Sets will be installed on Pipe Making Machine/Tube Milll to make Stainless Stee/Carbon Steel Pipes

    (round pipe diameter 5mm-325mm, square pipe 10*10mm-300*300mm, rectangle pipe 10*20mm-120*60mm).

    They are with high precision, high durability and long serivce life, to reduce marking scratch on pipe surface: we

    also customized the Roll Sets for your.

    Parameter

    Detailed Images


    Advantages


    FAQ:

    Q:Are you manufacturer?
    A:Yes,we are manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and

    Moulding ). We also have our own R&D department. Welcome to visit us.
    Q:What kind of payment term do you do?
    A: We do T/T and L/C.
    Q:What info do you need before giving me the price and proposal?
    A: Since we design individual machine based on our customer's requirement, we need your desired

    products' basic dimension, including all the pipe diameter(or tube length), thickness range , usage,

    raw material steel grade, coil weight, and degree of automation.
    Q: What should I do if I just start a new business?
    A:Contact us immediately ,we provide free consultant for pre-sales service .Also we can help you

    solve the raw material (steel coil) purchase, worker training, international market price, and more.
    Q:How do you do QA?
    A:We have special team to do strict QA,this is one of our strengths:
    (1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

    (2)Every shaft will be inspected for the centering jumpiness.
    (3)Every roller will be checked to make sure its in the range of tolerance critical parts will be
    inspected for all dimensions.
    Q:Why I should choose you? what are the differences between you and other Chinese suppliers?
    A:We are concentrate on pipe making machines for more than 20 years. We have constructed many
    steady trading partners in Asia,Africa, middle east, Europe, and South America throughout the years.
    Our innovative designed production line and each single unit of the production line are not only
    economical but also practical.
