Cr12 Steel Pipe Making Mould Cr12MoV Tube Roll Welded Pipe Spacer
Roller Spacers
Working Principle of Welded Pipe Mould
The steel strip is fed into more than 4 sets of forming dies to be
rolled into tubes, and then welded into tubes by argon arc welding
or high frequency welding in the welding zone, and then pressed
into more than two sets of forming dies of standard size, and then
folded or cut cut. There are many ways to determine the size. The
simple point is to install a micro switch at a certain length of
the discharge port. After the pipe reaches the switch, the trigger
circuit controls the cutting wheel to cut the pipe.
Usage
Welded pipe molds are used to produce stainless steel profiles,
copper, aluminum, and iron profiles, as well as high-frequency
welded pipes. The quality of the roll determines the quality of the
product.
Product Flow
Cutting → Rough Machining → Quenching and Tempering → Finishing →
Heat Treatment (High Temperature Quenching and High Temperature
Tempering) → Polishing → Finished Product
Mold Type
Round tube molds, square tube molds, plum blossom tube molds, round
flat tube molds, oval tube molds, fan-shaped tube molds, octagonal
tube molds, and various special-shaped stainless steel profile
molds can be specially designed and manufactured for different
users.
Mould Style | Breakdown/ forming rolls
Fin pass rolls
Welding rolls
Sizing rolls
Turk’s head rolls |
Mould Material | Cr12,Cr12Mo1V1,Cr12MoV D2 Any special material according to your requirement |
Produced Pipe Shape and Size | Round steel pipe:Φ8(mm)-Φ820(mm)
Square steel pipe: can be as large as 550*550(mm)
Cold roll forming pipe: U-shape W-shape Z-shape steel sheet pile,
and so on
Any special shape can be customer-made |
Strong Hot Sell Point | 1. Advanced groove design
2. Strict analysis and inspection of raw materials
3. Special heat treatment technology
4. Precision machining
5. Advanced quality control system |

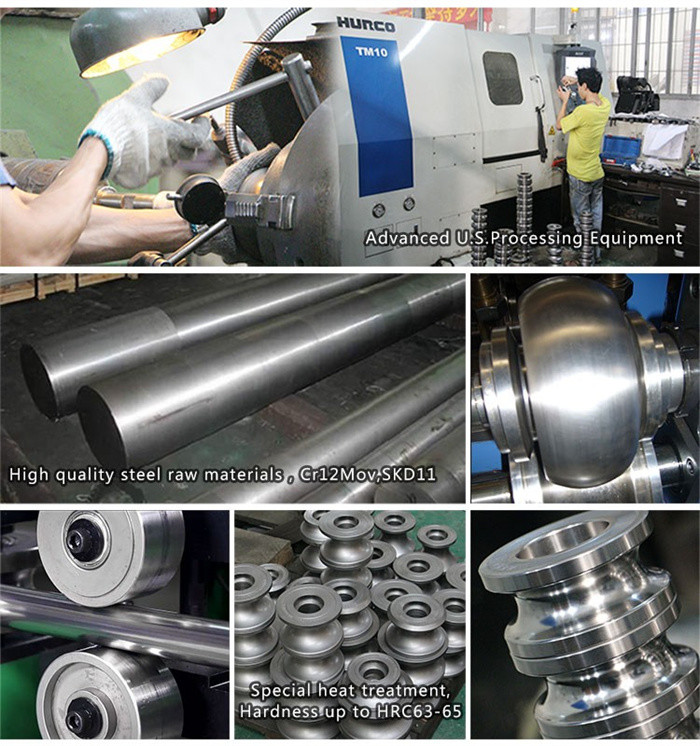

Product Display
Material Description
| Material Science | Varieties |
| Cr12Mov | Dongbei special steel Cr12MOV/ Daye special steel Cr12Mov |
| SKD11 | Daye special steel SKD11/ Taiwan SKD11/ Japan SKD11 |
| D2 | Daye special steel D2/ Taiwan D2 |
Different Kinds
Company Profile
Why Choose Us
Transport Method
Q:Are you manufacturer?
A:Yes,we are manufacturer. We have 4 factories ( Machining,
Assembling, Heat treatment, and Moulding ). We also have our own
R&D department. Welcome to visit us.
Q:What kind of payment term do you do?
A: We do T/T and L/C.
Q:What info do you need before giving me the price and proposal?
A: Since we design individual machine based on our customer's
requirement, we need your desired products' basic dimension,
including all the pipe diameter(or tube length), thickness range ,
usage, raw material steel grade, coil weight, and degree of
automation.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant for pre-sales
service .Also we can help you solve the raw material (steel coil)
purchase, worker training, international market price, and more.
Q:How do you do QA?
A:We have special team to do strict QA,this is one of our
strengths:
(1)Every gear box will be tested for 8 hours with oil inside to
guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of
tolerance critical parts will be inspected for all dimensions.
Q:Why I should choose you? what are the differences between you and
other Chinese suppliers?
A:We are concentrate on pipe making machines for more than 20
years. We have constructed many steady trading partners in
Asia,Africa, middle east, Europe, and South America throughout the
years. Our innovative designed production line and each single unit
of the production line are not only economical but also practical.
