Carbon Steel Tube Mill Welded Duct Forming Machine ERW Steel Pipe
Production Line
Product description
The mill is intended for manufacturing of round pipe of Φ114mm-Φ273mm with thickness of 3mm–10mm from cold-rolled and hot-rolled coil strip by means of
unclosed tubular blank with its subsequent welding into tube, edge
heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube
welding machine, cooling, further sizing or shaping and on-stream
cutting of endless tube in measured lengths.
Technical Flow Of The Production Line

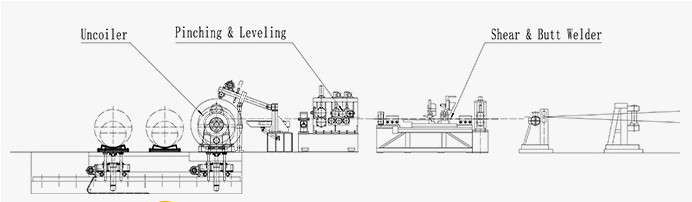

SteelTape →→ Double-head un-coiler →→ Strip-head Cutter and welder
→→ Spiral accumulator →→ Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High
frequency induction welding unit +squeeze roller) + De-burr frame →→ Cooling unit →→ Sizing unit and straightener →→ Cold saw under computer-control →→ Run-out table →→ Packing machine
Equipment advantages
√ When producing round pipe, it can utilize ZTF forming technique
√ When producing square & rectangular tube, it can utilize directly
square-square (DSS) technique
Product Parameter
| Product&yield | Round Pipe | 114mm-273mm Thickness:3.0mm-10.0mm |
| Square & rectangle tube | 90mm×90mm -210mm×210mm Thickness:3.0mm-8.0mm |
| Length | 6m-12m Length Tolerance: ±3mm |
| Production Speed | 20-45 m/min |
| Production capacity | 40,000ton/year |
| Consumption | Mill installed capacity | 350 kw |
| Line Area | 120m(length) ×10m (width) |
| worker | 6-8 workers |
| Raw Material | Carbon Steel coil | Carbon steel coil Q235B(ASTM GR·D,σs 230) |
| Width | 280mm-690mm Thickness: 2.0mm-8.0mm |
| Coil ID | 570-640mm |
| Coil OD | Max 1800mm |
| Coil Weight | 15.0t |
Product Details
1. uncoiler: 360º rotary hydraulic-pressure tight, which insure
steel coil feeding altematively and make steel strip go into
accumulator freely.
2. accumulator: It has two kinds of accumulator for optional.
Usually big line use roller type, and small line use disc type.

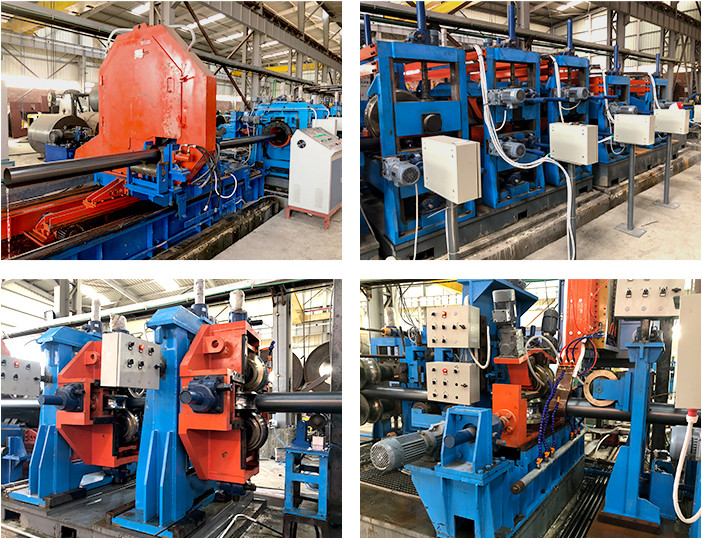

3. forming part: mainly roughly mill-forming steel strip and
controlling weld seam.
4. sizing part: mainly fine shaping pipe after welding and
controlling pipe accuracy.
5. turkey's head: mainly used for straightening of finished pipe
roughly online.
