Double - Headed Decoiler Manual Rotation Unwinder Pneumatic Type
Uncoiler Machine
Description
Double head decoilers are a useful option on time management with
capacity from 750 kg to 4,000 kg for mechanical models and 4,000 kg
to 10,000 kg for hydraulic models. You can save time and have
higher production capacities since it gives you option to load the
spare coil during the decoiling operation of the main coil.
Main Feature
Double head machanical decoilers are designed to minimize the coil
loading time. While one head is uncoiling the coil, second head is
keeping the coil ready. Once the first head finishes the uncoil
process, the second head starts to uncoil. Thus the
loading-unloading time is eliminated from the processes, where the
time is essential.
1. 500 kg - 2500 kg steel roll carriage
2. 30 mm - 500 mm steel roll width
3. speed control adjustment system
4. brake lining system
5. tightening roll hub by plunger system
6. ability of uncoiling from both heads

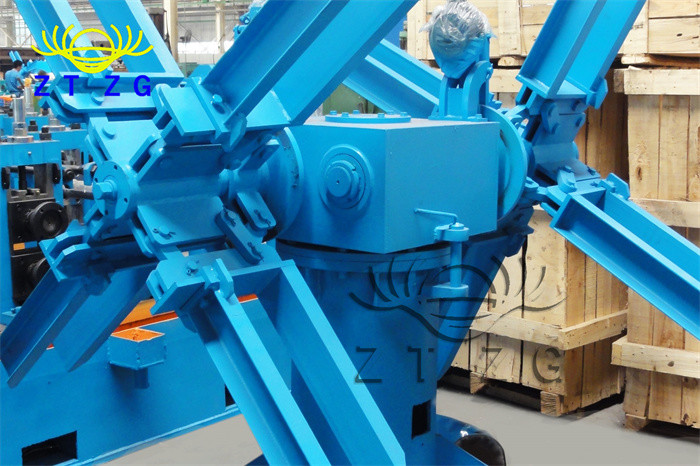

Product Display
Details
The base part
1. The whole frame is welded design,adopt the second protection
welder for welding, first vertical fillet welding, then flat fillet
welding; first short welding, then long welding, to ensure weld
closely, improve quality.
2. All plates are cut by laser plasma with high precision.
3. All parts are processed by numerical control and CNC, with good
interchangeability.
4. The overall structure is simple, it is convenient for general
technical workers to assemble and replace, can greatly reduces the
maintenance cost.
Power part
1. Adopt model 80 worm gear vertical reducer, use the speed
converter of gear, reduce the rotation number of motor to desired
rotation number, and get the mechanism with larger torque.
2. Adopt vertical motor, low vibration, low noise, stator rotor
part adopt pure copper coil, life is 10 times of ordinary coil,
both ends are equipped with ball bearing, low friction, low
temperature.
Model List
| NO. | Name | Model | Steel Strip Width(mm) | Steel Strip Thickness(mm) |
| 1 | Single-head manual uncoiler | / | ≤250 | ≤3 |
2
| Double-head manual uncoiler
| UM32 | ≤100 | ≤4 |
| UM60 | ≤200 | ≤4 |
3
| Single-lead simple uncoiler
| UM400 | ≤420 | ≤3 |
| UM550 | ≤550 | ≤3 |
| UM750 | ≤750 | ≤3 |
4
| Hydraulic uncoiler
| Double-head | ≤1050 | ≤10 |
| Single-head | ≤1050 | ≤10 |
About Us
Q:Are you manufacturer?
A:Yes,we are manufacturer. We have 4 factories ( machining,
assembling, heat treatment,and mould factory)And we have our own
R&D department. Welcome to visit us.
Q:What kind of payment term you can do?
A: We can accept T/T and L/C.
Q:What info you need before you make the proposal?
A:The pipe diameter , thickness range , usage, raw material steel
grade, coil weight and automatic degree.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant for pre-sales
service .Also we can help you to solve the raw material (steel
coil) purchase,worker training,international market price.
Q:How do you do QA?
A:We have special team to do strict QA,this is one of our
strengths:
(1)Every gear box will be tested for 8 hours with oil inside to
guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of
tolerance critical parts will be inspected for all dimensions.
Q:Why I should choose you,what are the differences between you and
other Chinese suppliers?
A:We are concentrate on this industry for more than 20 years,and
especially in pipe making machines. Our pipe making machine line
directly export to Russia,Vietnam,lndia,Indonesia,and many other
countries in Asia, Africa, middle east and South America.
