Automatic 2.0mm Square Pipe Making Machine Carbon Steel Erw Tube Mill

Ask Lasest Price
Brand Name :	ZTZG
Model Number :	ERW165
Certification :	ISO9001
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	200 sets/year
Delivery Time :	90 days

Add to Cart

Product Details
Company Profile

Automatic 2.0mm Square Pipe Making Machine Carbon Steel Erw Tube Mill

Automatic Square Pipe Making Machine Carbon Steel ERW Tube Mill

The high-frequency pipe production line is specialized equipment to produce high frequency straight seam welded pipes for structuralpipe and industrial pipe with 60mm×60mm -130mm×130mm and wall thickness of 2.0mm-5.0mm.

Direct Square to Square Pipe Mill/Tube Mill

Compare with round into square&rectangle forming way,this way is better for the shape at the edge of cross section,comparatively, semi-diameter of inner arc is Small, and the brim is flat, outlook is regular.

It is directly roll the steel strip and bend it to square & rectangular shape, then weld it to finish the formation.

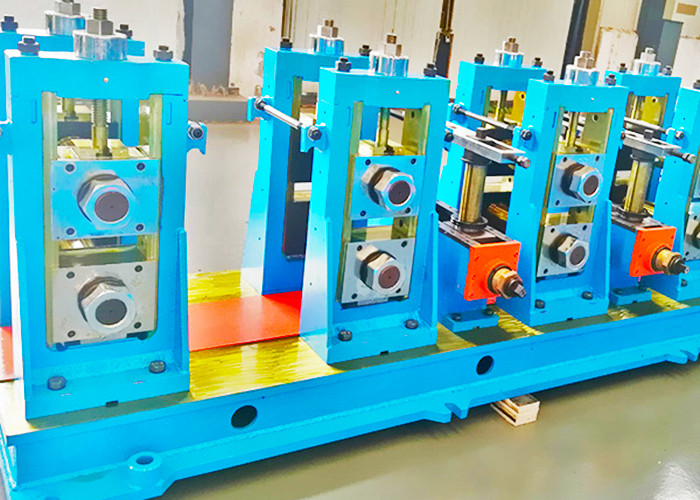

Erw Carbon Steel Tube Mill

Accumulator machine

**Basic Technical Information of Welded Pipe Production Line**
Product&yield	Round Pipe	76mm-165mm Thickness:2.0mm-6.0mm
	Square & rectangle tube	60mm×60mm -130mm×130mm Thickness:2.0mm-5.0mm
	Length	6m-12m Length Tolerance: ±3mm
	Production Speed	20-50 m/min
	Production capacity	30,000ton/year
Consumption	Mill installed capacity	220 kw
	Line Area	85m(length) ×7m (width)
	worker	6-8 workers
Raw Material	Carbon Steel coil	Q235B(ASTM GR·D,σs 230)
	Width	240mm-520mm Thickness: 2.0mm-6.0mm
	Coil ID	580-700mm
	Coil OD	Max 1800mm
	Coil Weight	6.0t

Products

Architectural structure tubes, low-pressure liquid tubes, coal transmission belt tubes, drive shaft tubes, guardrail tubes, tower footing tubes, automobile beam steel tube and other products.

Tube Mill Forming process

Technical flow

Scrolling up→ Uncoiling → Shear and Welding→ Spiral accumulator→ Forming → H.F. induction welding→ External burr removing→ Cooling → Sizing→ Flying saw → Run out table →Inspecting→ Packing→ Warehouse

**Forming process**
Round pipe	Cold roll forming process	Good roller design
Round pipe	ZTF forming process	Save alt least 60% roller cost with electric control adjustment
Square & rectangular pipe	General round-to-square process	Stable forming process
	Round-to-square with turkshead	Good pipe quality
	Process of directly square-to-square(DSS)	One set of roller can produce all tubes with electric control and automatic adjustment

ERW Tube Mill

Equipment Advantages

When producing round pipe, it can utilize ZTF forming technique
When producing square & rectangular tube, it can utilize directly square-square (DSS) technique

We can design and manufacture square tube machine according to customer’s requirement.
