Scrolling up→ Uncoiling → Shear and Welding→ Spiral accumulator→
Forming → H.F. induction welding→ External burr removing→ Cooling →
Sizing→ Flying saw → Run out table →Inspecting→ Packing→ Warehouse
Square Tube Mill Details Images:

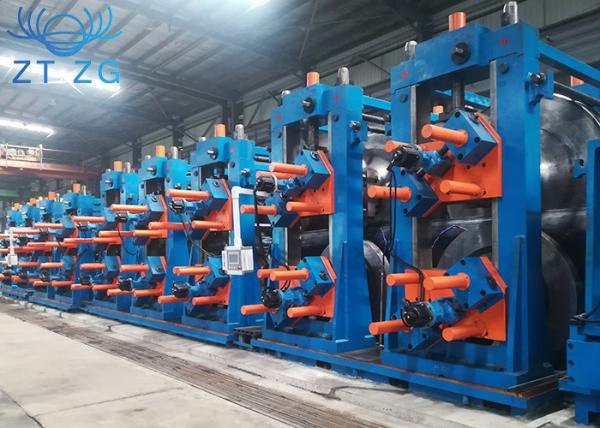

Forming Section
Function: to form the steel strips into a round shape and ready to be
welded.
Advantage:
>Advanced forming technical
>One-stage molding platform
>Reliable quality gearbox
>Siemens Beide motor
Welding Section
Function: To weld the edges of the steel strips together by H.F. Welder (the H.F. Welder is not included).
Forming & Sizing Mill
Function: After welding, the pipes are almost the round shape, but it still
needs to be modified into a regular round shape.
Initial Straightening Machine
Function: Another name is Turks head. It is used to rough-straighten the
welded steel tube. It consists of two four-roller straightening
machines, with its head able to revolve and move horizontally. It
utilizes three-point method to straighten steel tube.
Square Tube Mill Auxiliary Machines:
Customers can trust us to buy the auxiliary machines. Our choice of
suppliers for the auxiliary parts is made after 22 years of
experience.
Un-coiler
Function: Used for supporting strip steel coil and open it as strip steel so
as to make preparation for the pipe forming process.
Shearing butt welding
2 Types: Automatic & Manual
Function: Shear & end welder parallel cuts the head of the strip coming out
of uncoiler and the tail of the strip steel going into the
accumulator, and weld them together to form a smooth and continuous
line of strip steel.
Strip Accumulator
Function: Accumulator is used to accumulate strip steel from uncoiler and
provide strip steel to forming unit. It leaves time for the shear &
end welder for strip welding and stores certain amount of strip for
continuous forming.
Solid State High Frequency Welder
Function: The welder is used for welding edge heating with high-frequency
heating device. The whole set of solid-state H.F welder comprises
of rectifying cabinet, inverter, output cabinet, connecting optical
fiber, closed loop water cooling system, central operator console,
and mechanical adjustment device.
Saw Cutting System
Function: Flying saw is used to cut tube during static and motion status in
continuously production into desired length.
Straightening Machine
Function:Straightening machine is a finishing equipment for the
high-frequency straight seam welded pipe production line, which is
used to straighten the steel pipe to eliminate the stress and
bending after the steel pipe forming and welding.
Automatic Stacking and Packing Machine
Function: Electrical control using PLC control, touch screen, to achieve
human-computer dialogue, manual, automatic between the free
conversion.
