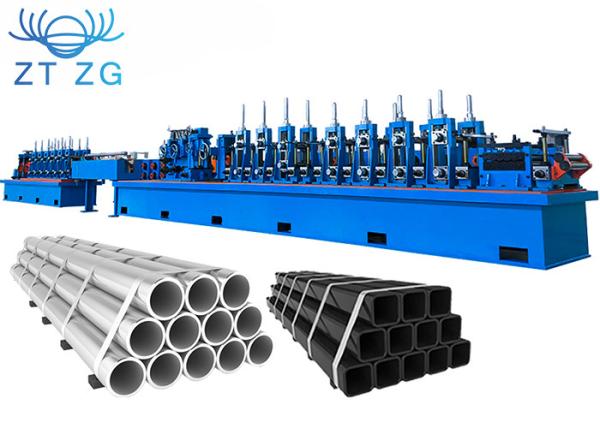

    Grey Mild Steel Drain Pipe High Productivity Square Tube Mill

    Ask Lasest Price
    Brand Name : ZTZG
    Model Number : ERW660
    Certification : ISO9001/CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/year
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    Grey Mild Steel Drain Pipe High Productivity Square Tube Mill

    Grey Mild Steel Drain Pipe High Productivity Square Tube Mill


    500×500 Square Tube Mill Product Parameter:


    Product & yieldRound Pipe325mm-660mm Thickness:4.0mm-20mm
    Square & rectangle tube250mm×250mm-500mm×500mm Thickness:4.0mm-20.0mm
    Length6m-12m Length Tolerance:±3mm
    Production Speed20-40m/min
    Production Capacity30000ton/year
    ConsumptionMill Installed Capacity220kw
    Line Area300m(length)×20m(width)
    Worker6-8 workers
    Raw MaterialCarbon Steel CoilCarbon steel coil Q235B(ASTM GR·D,σs 230)
    Width1000mm-2000mm Thickness:4mm-20mm
    Coil ID580-700mm
    Coil ODMax 2300mm
    Coil Weight35.0t

    Technical flow


    Scrolling up→ Uncoiling → Shear and Welding→ Spiral accumulator→ Forming → H.F. induction welding→ External burr removing→ Cooling → Sizing→ Flying saw → Run out table →Inspecting→ Packing→ Warehouse



    Production Process


    Grey Mild Steel Drain Pipe High Productivity Square Tube Mill


    Company Introduction


    Grey Mild Steel Drain Pipe High Productivity Square Tube Mill


    FAQ:

    Q:Are you manufacturer?
    A:Yes,we are manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and

    Moulding ). We also have our own R&D department. Welcome to visit us.
    Q:What kind of payment term do you do?
    A: We do T/T and L/C.
    Q:What info do you need before giving me the price and proposal?
    A: Since we design individual machine based on our customer's requirement, we need your desired

    products' basic dimension, including all the pipe diameter(or tube length), thickness range , usage,

    raw material steel grade, coil weight, and degree of automation.
    Q: What should I do if I just start a new business?
    A:Contact us immediately ,we provide free consultant for pre-sales service .Also we can help you

    solve the raw material (steel coil) purchase, worker training, international market price, and more.
    Q:How do you do QA?
    A:We have special team to do strict QA,this is one of our strengths:
    (1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

    (2)Every shaft will be inspected for the centering jumpiness.
    (3)Every roller will be checked to make sure its in the range of tolerance critical parts will be

    inspected for all dimensions.
    Q:Why I should choose you? what are the differences between you and other Chinese suppliers?
    A:We are concentrate on pipe making machines for more than 20 years. We have constructed many

    steady trading partners in Asia,Africa, middle east, Europe, and South America throughout the years.

    Our innovative designed production line and each single unit of the production line are not only

    economical but also practical.
