ERW 102 ST37 ST44 ST52 Furniture Pipe Production Line ERW Pipe Tube
Mill
summary
The equipment is the special equipment for manufacturing φ 38 ~ φ
102m,δ0.8 ~ 3mm high frequency straight welded pipe and
corresponding square pipe, special-shaped pipe (δ≤3.0mm). The
equipment is composed of a self-feeding frame to fixed-size cutting
and sawing. The speed of pipe making can be adjusted in the range
of appropriate pipe diameter and wall thickness.
The technical flow of the production line:
{SteelTape}→→ Double-head un-coiler →→Strip-head Cutter and

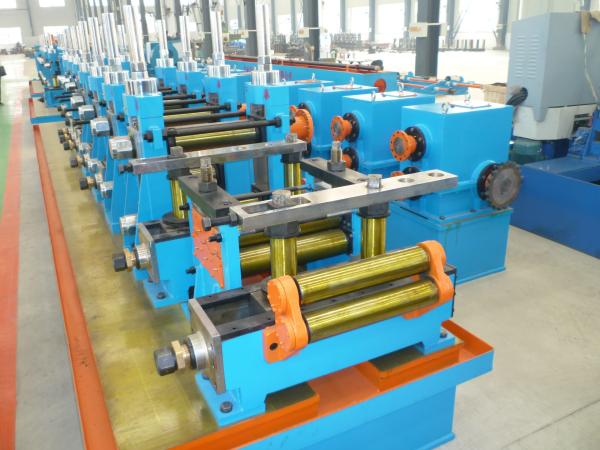

welder→→Spiral accumulator→→Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High
frequency induction welding unit +squeeze roller) + De-burr frame →→Cooling unit →→ Sizing unit and straightener →→Cold saw under computer-control →→ Run-out table→→ Semi-auto Packing machine
| Steel Pipe Specification |
| Round Pipe diameter | Ø38–Ø102mm |
| Pipe Thickness | 1.0– 4.0mm |
| Pipe Length | 6-12m |
| Length Tolerance | 0-3mm |
| Steel Tape Specification |
| Material | Carbon steel (δb≤500Mpa, δs≤235Mpa) |
| Inner diameter | Φ470-Φ510mm |
| Outer diameter | Φmax=1900mm |
| Strip steel width | 40x40mm-90x90mm |
| Strip steel thickness | 1.0mm-4.0mm |
| The maximum weight | 3.0 tons |
| Electric installed capacity | appro.500KW |
| Line Speed | 1.5m3/h |
FAQ
Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have 4 factories ( Machining,
Assembling, Heat treatment, and Moulding ). We also have our own
R&D department. Welcome to visit us.
Q: What kind of payment term do you do?
A: We do T/T and L/C.
Q: What info do you need before giving me the price and proposal?
A: Since we design individual machines based on our customer's
requirements, we need your desired products' basic dimensions,
including all the pipe diameter(or tube length), thickness range,
usage, raw material steel grade, coil weight, and degree of
automation.
Q: What should I do if I just start a new business?
A: Contact us immediately, we provide a free consultant for
pre-sales service. Also, we can help you solve the raw material
(steel coil) purchase, worker training, international market price,
and more.
Q: How do you do QA?
A: We have a special team to do strict QA, this is one of our
strengths:
(1)Every gearbox will be tested for 8 hours with oil inside to
guarantee there is no leak.
(2)Every shaft will be inspected for centering jumpiness.
(3)Every roller will be checked to make sure it's in the range of
tolerance critical parts will be inspected for all dimensions.
Q: Why I should choose you? what are the differences between you
and other Chinese suppliers?
A: We are concentrating on pipe-making machines for more than 20
years. We have constructed many steady trading partners in Asia,
Africa, the Middle East, Europe, and South America throughout the
years. Our innovative designed production line and every single
unit of the production line are economical and practical.
