Slitting Line Machine Steel Plate Cut Machinery Metal Sheet
Slitting Equipment Steel Coil Slitting Machine
Products Description
The slitting machine is also called vertical slitting line which
are used to slit cold rolled steel coil,hot rolled steel
coil,galvanized steel coil,silicone steel coil,stainless steel
coil,aluminum coils etc into different width according to the
user’s production demands and cut as well
The smaller metal strips are recoiled at the end of the slitting
machine by which these smaller strips are used necessarily for the
next process usage in the professional field of making
transformers,motors making industry,tube/pipe welding mill
industry,Cold roll forming industry, ceiling drywall industry and
other high-precison equipment making and metal strips making
industries.
According to the material slitting thickness there are thin plate
or board slitting machine,media-thickness plate or board slitting
machine and thick plate or board slitting machine. According to the
metal materials there are copper strips slitting machine,stainless
steel slitting machine,cold or hot rolled plate slitting
machine,silicone steel slitting machine.
Application
It is suitable for the longitudinal shearing of the metal coils and
rewinding coils.

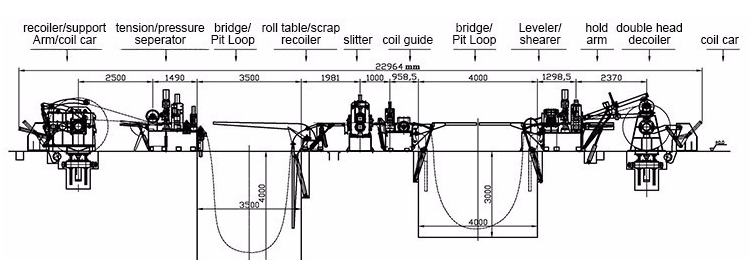

Production Process
Loading Coil → Uncoiling → Leveling → Cutting the Head and End →
Circle Shear → Slitter Edge Recoiling → Accumulator → Steel Head
and End Bending → Separating → Tensioner → Coiling Machine
Advantages
Easy to operate, slitting quality is high, excellent material
utilization, Stepless shearing speed regulation, etc.
Structure
It consist of uncoiler, feeding and positioning, slitting unit,
recoiler, etc.
Product Parameter
Steel
coil parameters | Material | Cold rolled sheets and GI sheets |
| Tensile strength | Tensile strengthδb≤500Mpa,
Yield strength δS≤235Mpa |
| Steel thickness | 0.18-1.5mm |
| Steel width | 500-1000 |
| Steel coil weight | 15T |
| Slit parameter | Max slit quantity | 10 pcs (4mm) 7 pcs (10mm) |
| Width precision | ±0.05mm |
| Other parameters | Line speed | 20-70m/min |
| Operator needed | 1 mechanical engineer +2 common workers |
| Line direction | Customer’s request |
| Machine color | Customer’s request |
Model List
| No. | Model | Roll Width(mm) | Thickness(mm) | Cutting Speed(m/min) |
| 1 | ZJ1000 | 500-1000 | 0.18-1.5 | 80-100 |
| 2 | ZJ1250 | 900-1250 | 0.5-2 | 50-90 |
| 3 | ZJ1500 | 1000-1500 | 1.8-4 | 40-80 |
| 4 | ZJ1600 | 1000-1600 | 2-6 | 30-70 |
| 5 | ZJ1600 | 1000-1600 | 4-10 | 20-70 |
| 6 | ZJ1600 | 1000-1600 | 4-12.7 | 20-60 |
| 7 | ZJ1800 | 1000-1800 | 5-14 | 15-60 |
| 8 | ZJ2000 | 1200-2000 | 6-16 | 12-50 |
Note: We can design and manufacture slitting machine according to
customers' requirements.

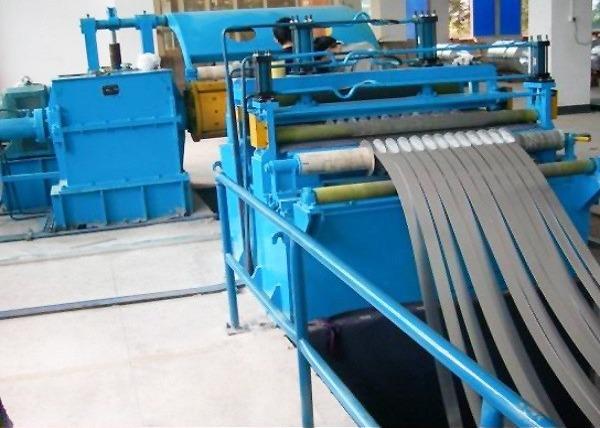

Product Display
