Steel Strip 1300mm Thickness 4mm Low Carbon Steel Coil Slitting
Machine
Slitting line description:
The slitting machine is also called vertical slitting line which
are used to slit cold rolled steel coil,hot rolled steel
coil,galvanized steel coil,silicone steel coil,stainless steel
coil,aluminum coils etc into different width according to the
user’s production demands and cut as well The smaller metal strips
are recoiled at the end of the slitting machine by which these
smaller strips are used necessarily for the next process usage in
the professional field of making transformers,motors making
industry,tube/pipe welding mill industry,Cold roll forming
industry, ceiling drywall industry and other high-precison
equipment making and metal strips making industries. According to
the material slitting thickness there are thin plate or board
slitting machine,media-thickness plate or board slitting machine
and thick plate or board slitting machine. According to the metal
materials there are copper strips slitting machine,stainless steel
slitting machine,cold or hot rolled plate slitting machine,silicone
steel slitting machine.

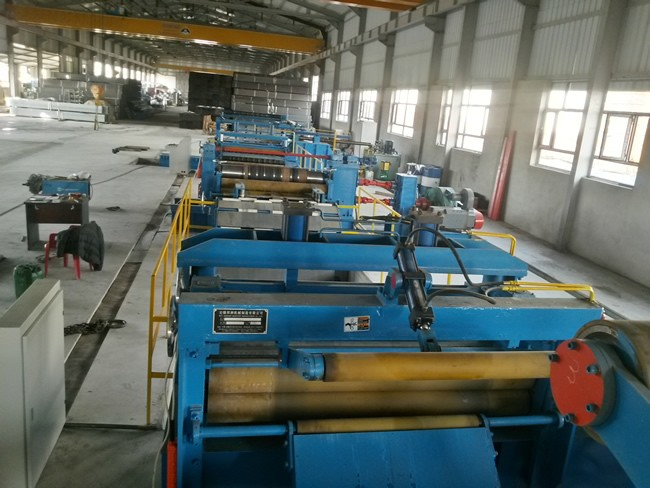

Working process
From right to left are: Entry coil car→De-coiler →Press and pinch
device→Hydraulic cutter→Looper 1→Side guide device→ Slitter→Scrap
winder→Looper 2→Tension stand →Re-coiler→Exit coil car
Composed Device
Composed Device
| No | Name | Quantity |
| 1 | Entry coil car | 1PC |
| 2 | Hydraulic de-coiler | 1PC |
| 3 | Hydraulic press and pinch device | 1PC |
| 4 | Hydraulic cutter | 1PC |
| 5 | Looper 1 | 1PC |
| 6 | Side guide device | 1PC |
| 7 | Slitter | 1PC |
| 8 | Scrap winder | 1PC |
| 9 | Looper 2 | 1PC |
| 10 | Tension stand | 1PC |
| 11 | Re-coiler | 1PC |
| 12 | Exit coil car | 1PC |
| 13 | Hydraulic system | 1 SET |
| 14 | Electrical system | 1 SET |

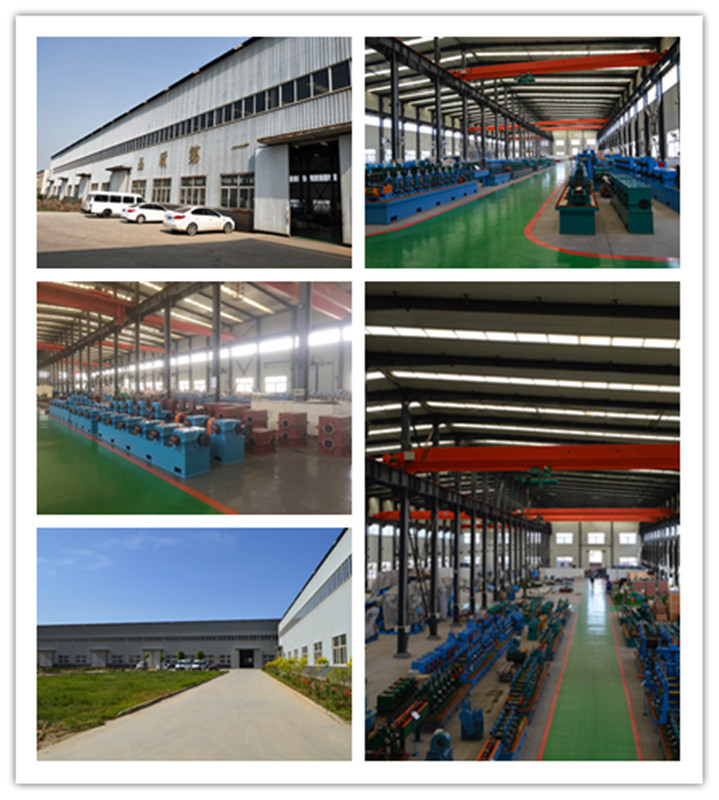

Our Company
Product List
| Model | Roll Width(mm) | Thickness(mm) | cutting speed(m/min) |
| Z1000 | 500-1000 | 0.18-1.5 | 80-100 |
| zJ1250 | 900-1250 | 0.5-2 | 50-90 |
| zJ1500 | 1000-1500 | 1.8-4 | 40-80 |
| zJ1600 | 1000-1600 | 2-6 | 30-70 |
| zJ1600 | 1000-1600 | 4-10 | 20-70 |
| zJ1600 | 1000-1600 | 4-12.7 | 20-60 |
| ZJ1800 | 1000-1800 | 5-14 | 15-60 |
| zJ2000 | 1200-2000 | 6-16 | 12-50 |
FAQ
Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have 4 factories ( Machining,
Assembling, Heat treatment, and Moulding ). We also have our own
R&D department. Welcome to visit us.
Q: What kind of payment term do you do?
A: We do T/T and L/C.
Q: What info do you need before giving me the price and proposal?
A: Since we design individual machines based on our customer's
requirements, we need your desired products' basic dimensions,
including all the pipe diameter(or tube length), thickness range,
usage, raw material steel grade, coil weight, and degree of
automation.
Q: What should I do if I just start a new business?
A: Contact us immediately, we provide a free consultant for
pre-sales service. Also, we can help you solve the raw material
(steel coil) purchase, worker training, international market price,
and more.
Q: How do you do QA?
A:We have a special team to do strict QA, this is one of our
strengths:
(1)Every gearbox will be tested for 8 hours with oil inside to
guarantee there is no leak.
(2)Every shaft will be inspected for centering jumpiness.
(3)Every roller will be checked to make sure it's in the range of
tolerance critical parts will be inspected for all dimensions.
Q: Why I should choose you? what are the differences between you
and other Chinese suppliers?
A: We are concentrating on pipe-making machines for more than 20
years. We have constructed many steady trading partners in Asia,
Africa, the middle east, Europe, and South America throughout the
years. Our innovative designed production line and every single
unit of the production line are economical and practical.
