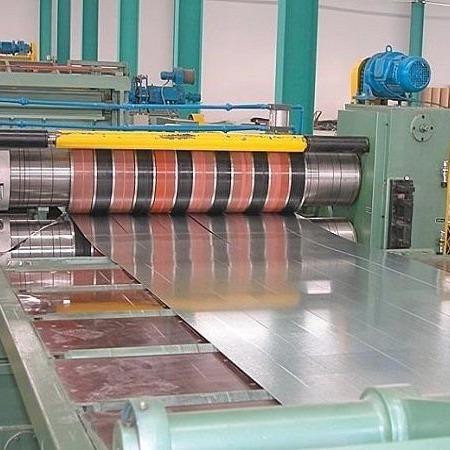

Automatic Metal Steel Sheet Coil Slitting Machine Production Line
Price
Products Description
Slitting line is used to slit wide steel strip into certain width
and then recoil them to meet the request of various procedure for
welded pipe and cold rolled section steel production.
According to the material slitting thickness there are thin plate
or board slitting machine,media-thickness plate or board slitting
machine and thick plate or board slitting machine. According to the
metal materials there are copper strips slitting machine,stainless
steel slitting machine,cold or hot rolled plate slitting
machine,silicone steel slitting machine.
Application
Metal Slitting Machine is used for the metal plate decoiling
,slitting and winding into several volumes needed width coil
plate.Suitanle for processing of cold rolled and hot rolled carbon steel ,silicon steel,
tinplate,stainless steel and the surface of all kinds of metal
plate after plating. The slitting line PLC control ,human-machine interface, according to a high degree of
automation ,simple operation and reliable.
Production Process
Loading Coil → Uncoiling → Leveling → Cutting the Head and End →
Circle Shear → Slitter Edge Recoiling → Accumulator → Steel Head
and End Bending → Separating → Tensioner → Coiling Machine
Structure
It consist of uncoiler, feeding and positioning, slitting unit,
recoiler, etc.
Product Parameter
| Name | Coil Slitting Machine |
| Brand | ZTZG |
| Color | Customized |
| Keyword | Slitting line |
| Application | Slitting |
| Raw material | Galvanized steel,low carbon steel |
| Coil width | 1200-2000mm |
| Type | Automatic |
| Thickness | 6-16mm |
| Speed | 12-40m/min |
| Feeding width | Customize |
Model List
| No. | Model | Roll Width(mm) | Thickness(mm) | Cutting Speed(m/min) |
| 1 | ZJ1000 | 500-1000 | 0.18-1.5 | 80-100 |
| 2 | ZJ1250 | 900-1250 | 0.5-2 | 50-90 |
| 3 | ZJ1500 | 1000-1500 | 1.8-4 | 40-80 |
| 4 | ZJ1600 | 1000-1600 | 2-6 | 30-70 |
| 5 | ZJ1600 | 1000-1600 | 4-10 | 20-70 |
| 6 | ZJ1600 | 1000-1600 | 4-12.7 | 20-60 |
| 7 | ZJ1800 | 1000-1800 | 5-14 | 15-60 |
| 8 | ZJ2000 | 1200-2000 | 6-16 | 12-50 |
Note: We can design and manufacture slitting machine according to
customers' requirements.

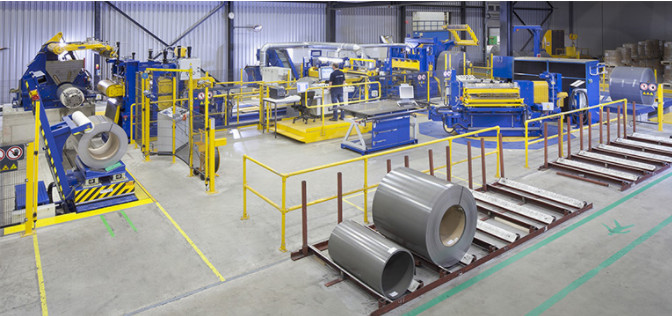

Product Display
