High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V

    Buy cheap High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V from wholesalers

    Buy cheap High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V from wholesalers
    • Buy cheap High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V from wholesalers
    • Buy cheap High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V from wholesalers
    • Buy cheap High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V from wholesalers
    • Buy cheap High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V from wholesalers

    High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V

    Ask Lasest Price
    Brand Name : ZTZG
    Model Number : 123
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/year
    Delivery Time : 120 days
    • Product Details
    • Company Profile

    High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V

    Product Description

    4x1350mm Automatic High Precision Steel Coil Slitting Line Machine

    High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V

    Application:It is suitable for the longitudinal shearing of the metal coils and rewinding coils.
    Advantages:Easy to operate, slitting quality is high, excellent material utilization, Stepless shearing speed regulation, etc.
    Structure:It consist of uncoiler, feeding and positioning, slitting unit, recoiler, etc.
    Applicable Materials:Tinplate, silicon steel, aluminum, copper, stainless steel and galvanized steel, etc.

    High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V

    Slitting machine line schematic diagram for your information.

    High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V
    High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V
    High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V
    High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V
    Main Parameters
    Processing Thickness
    0.3~4mm
    Processing Width
    1350mm
    Slitting Accuracy
    ±0.15 mm
    Slitting Speed
    120m/min
    Coil Inner Diameter
    500/610 mm
    Coil Outer Diameter
    ≤2000 mm
    Max. Slitting Numbers
    6-22pcs
    Slitting Coil Width
    ≥20 mm
    ……
    ……
    Not limited to these parameters, custom made according to client practical demands.
    Detailed Pictures
    High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V

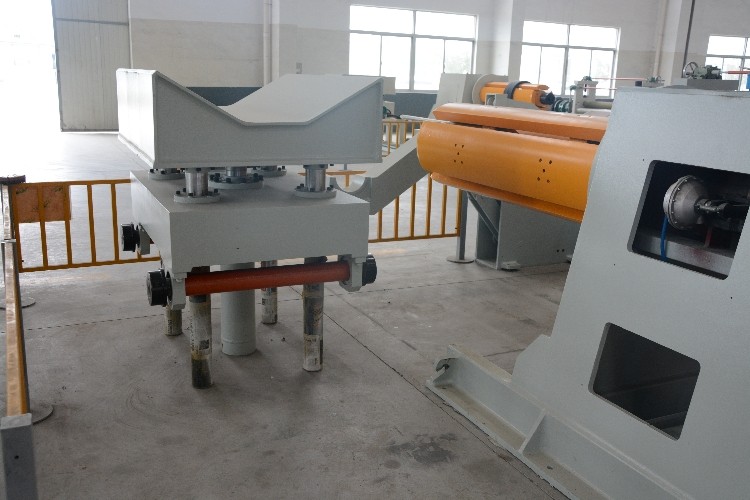

    Loading cart:Load coil to uncoiler

    High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V

    Uncoiler:Uncoil steel coils

    High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V
    High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V

    Leveling machine:Leveling sheet and transmit sheet to devices behind it.

    High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V

    Shearing machine:shearing coil end.

    High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V

    Horizontal accumulator:Store a amount of sheet to ensure machine working continuously.

    High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V

    Centering device:center sheet before slitting.

    High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V

    Slitting machine:Slitting coil into strips.It can slit strips of different widths at the same time.

    High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V

    Waste material winder:recoil waste material.

    High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V

    Recoiler:recoil strips into small coils.

    Welcome To Visit Our Factory!!!

    Our Service
    High Precision 4x1350mm Steel Coil Slitting Machine 220/380/415/440V

    Automatic Cold Rolling Metal Slitting Machine Line

    Pre-Sales Service

    * Inquiry and consulting support.
    * Sample testing support.
    * View our factory.

    After-Sales Service

    * Training how to install the machine, training how to use the machine.
    * Engineers available to service machinery overseas.


    FAQ

    Q:Are you manufacturer?
    A: Yes, we are manufacturers of slitting machine,we have our own technical team, and about 80,000 sq.m workshop, welcome to visit us!


    Q:What payment terms do you accept?
    A: We are flexible on payment terms,we can also help you on financing,please contact us for details!


    Q:What information will you need to make the proposal?
    A: Coil weight,coil width,coil thickness,minimum strip width,maximum slitting quantity and your special requirements.


    Q:What should I do to start a new business?
    A: Please contact us immediately,we provide free pre-sales consultant service. Also we can help you to solve the worker training.


    Q: Do you provide training and maintenance?
    A: Yes. In order to your more efficiency for production, when the machine has arrived at the importer’ s port.
    Our company will send engineers to installing the machine and responsible for training the worker of customer until they can operating the machine skillful.
    During the warranty time, if the device can 't work normally, after receiving your notice, within 24 hours, we will send
    engineers to your factory for processing; If it is artificial damage,then need to charge a cost.
    Each machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.


    Q:Why choose you?What is the difference between you and other Chinese supplier?
    A: We have specialized in this area for over 20 years.Our slitting machines are exported to many countries in the world.
    You can get higher quality product & better professional service from Hitech with same price.
