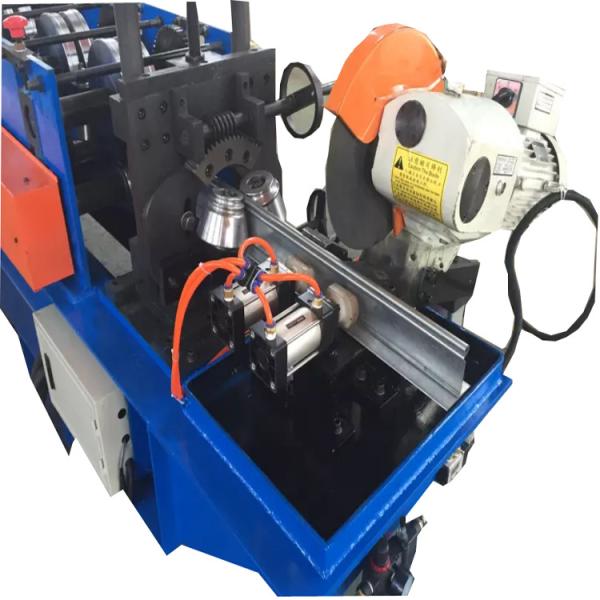

Galvanized Steel Profile C 45# Forged Steel Cold Roll Forming
Machine
Product Description
The finished product of Roll Forming Machine C Z is widely used in
the construction of various industrial plants, villages,
warehouses, supermarkets, hotels, exhibition, family construction,
shopping malls shutter doors and etc. It has the advantage of
beautiful, classical appearance and grace taste.
Work Flow:
Manual decoiler—Roll forming machine—PLC control—Hydraulic system
—Post cut—Stacking
Main Technical Specifications:
Name | High Quality C Z Shape Purlins Roll Forming Machine |
1 | Suitable raw material | PPGI/PPGL/GI/GL Steel Coils |
2 | Thickness of coil sheet | 1-3mm |
3 | Punching device | round hole or elliptical hole |
4 | Effective width | 100-300mm |
5 | Under frame | 400H-beam |
6 | Diameter of Soild shaft | 80mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway |
7 | Roller | Gcr15, processed by CNC lathe, Quenched and tempered treatment, hard chrome coated 0.05-0.07mm |
8 | Thickness of middle plate | 18mm |
9 | Forming stations | 15 |
10 | Drive type | By chain(1.5 inch) link bearing model 6212 |
11 | Power of main motor | 11kw with Cycloidal reducer, Lichao, Shanghai |
12 | Power of pump station | 5.5kw, Lichao, Shanghai |
13 | Forming speed | About 15-20m/min |
14 | Hydraulic cutting | Controlled by PLC |
15 | PLC | DELTA, TAIWAN / Mitsubishi, Japan |
16 | Material of cutting blade | Cr12Mov, quenching 58-62℃ |
17 | Frequency converter | It has the advantage of slowing down before cutting, to ensure thelength accuracy(±1mm, far better than industrialstandard ±3mm). |
18 | Switch | CHNT |
19 | Transducer | SAJ |
FAQ
Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have 4 factories ( Machining,
Assembling, Heat treatment, and Moulding ). We also have our own
R&D department. Welcome to visit us.
Q: What kind of payment term do you do?
A: We do T/T and L/C.
Q: What info do you need before giving me the price and proposal?
A: Since we design individual machines based on our customer's
requirements, we need your desired products' basic dimensions,
including all the pipe diameter(or tube length), thickness range,
usage, raw material steel grade, coil weight, and degree of
automation.
Q: What should I do if I just start a new business?
A: Contact us immediately, we provide a free consultant for
pre-sales service. Also, we can help you solve the raw material
(steel coil) purchase, worker training, international market price,
and more.
Q: How do you do QA?
A: We have a special team to do strict QA, this is one of our
strengths:
(1)Every gearbox will be tested for 8 hours with oil inside to
guarantee there is no leak.
(2)Every shaft will be inspected for centering jumpiness.
(3)Every roller will be checked to make sure it's in the range of
tolerance critical parts will be inspected for all dimensions.
Q: Why I should choose you? what are the differences between you
and other Chinese suppliers?
A: We are concentrating on pipe-making machines for more than 20
years. We have constructed many steady trading partners in Asia,
Africa, the Middle East, Europe, and South America throughout the
years. Our innovative designed production line and each unit of the
production line practical.
