    OD 114-273mm pipe Cold Rolled Steel Machine Guide Unit Tracking System

    Ask Lasest Price
    Brand Name : ZTZG
    Model Number : LW900
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/year
    Delivery Time : 120 days
    • Product Details
    • Company Profile

    OD 114-273mm pipe Cold Rolled Steel Machine Guide Unit Tracking System

    Guide Unit Tracking System Shaping Mill Round And Square Pipes Steel Cold Rolled Steel Machine


    Function and Structure

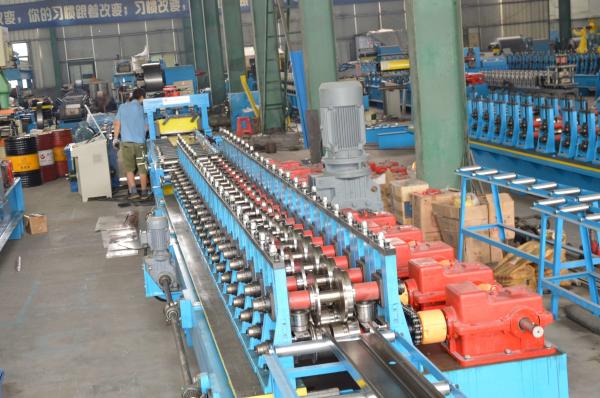

    C channel steel purlin production line is a machine with set of rollers can produce a variety of specifications of the finished C type purlin single roll molding machine. The machine is mainly composed of passive charging frame, leveling device, punching device, cutting device after forming, hydraulic station, computer control system and so on.


    Process Flow

    Feeding (manual) - sheet leveling - cold bending molding - profile straightening - measuring hole size, pneumatic clamping - hydraulic automatic punching, cutting - unloading (manual)



    Advantage

    Large diameter steel pipe refers to bending the pipe by means of machines and tools at normal temperature. Advantages are no heating equipment, tube is not filled with sand, easy to operate.


    OD 114-273mm pipe Cold Rolled Steel Machine Guide Unit Tracking System


    ZTZG Company Introduction

    FAQ


    Q: Are you a manufacturer?
    A: Yes, we are a manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
    Q: What kind of payment term do you do?
    A: We do T/T.
    Q: What info do you need before giving me the price and proposal?
    A: Since we design individual machines based on our customer's requirements, we need your desired products' basic dimensions, including all the pipe diameter(or tube length), thickness range, usage, raw material steel grade, coil weight, and degree of automation.
    Q: What should I do if I just start a new business?
    A: Contact us immediately, we provide a free consultant for pre-sales service. Also, we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
    Q: How do you do QA?
    A: We have a special team to do strict QA, this is one of our strengths:
    (1)Every gearbox will be tested for 8 hours with oil inside to guarantee there is no leak.

    (2)Every shaft will be inspected for centering jumpiness.
    (3)Every roller will be checked to make sure it's in the range of tolerance critical parts will be inspected for all dimensions.
    Q: Why I should choose you? what are the differences between you and other Chinese suppliers?
    A: We are concentrating on pipe-making machines for more than 20 years. We have constructed many steady trading partners in Asia, Africa, the middle east, Europe, and South America throughout the years. Our innovative designed production line and every single unit of the production line are economical and practical.

    Model List
    Model
    Width
    mm
    Square pipe
    mm
    Thickness
    mm
    Working spead
    m/min
    LW100
    40-100
    10x10-25x25
    0.5-2.0
    20-80
    LW200
    80-200
    20x20-50x50
    1.0-3.0
    20-80
    LW400
    200-400
    50X50-100X100
    2.0-5.0
    20-60
    LW600
    240-600
    60X60-150X150
    2.0-7.0
    20-60
    LW800
    320-800
    80X80-200X200
    2.5-10.0
    20-40
    LW1050
    400-1050
    100X100-250X250
    3.0-12.7
    15-30
    LW1250
    480-1250
    120X120-300X300
    3.0-14.0
    10-25
    LW1400
    600-1400
    150X150-350X350
    4.0-16.0
    8-20
    LW1600
    800-1600
    200X200-400X400
    6.0-18.0
    8-15
    LW2000
    1000-2000
    250X250-500X500
    6.0-20.0
    8-15
    LW2200
    1100-2200
    280X250-550X550
    6.0-22.0
    8-15
