Product description
Straight seam welding machine is specialized equipment to produce
high frequency straight seam welded pipes for structural pipe and
industrial pipe with Φ20mm~Φ500mm and wall thickness of 0.4~20.0mm.
Through optimization design, best materials choice, fabrication and
rollers, the whole line can be reached high precision and high
speed. Within suitable range of pipe diameter and wall thickness,
pipe production speed can be adjusted.
Technical Flow
Steel Tape → Double head uncoiler → Strip-head Cutter and welder →

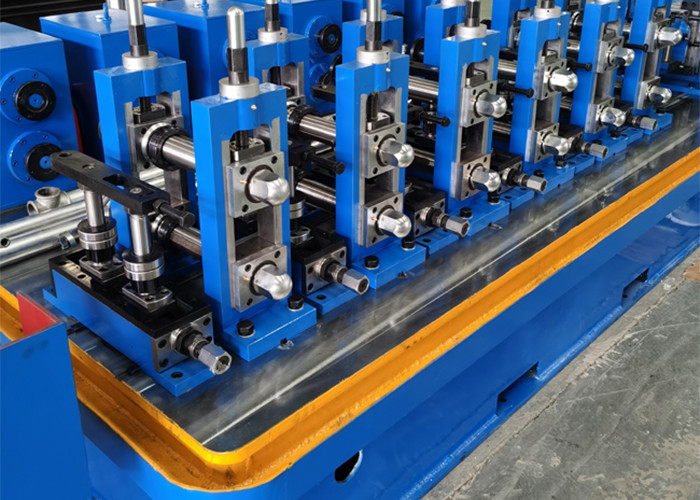

Spiral accumulator →Forming section (Flattening unit +Main driving
unit +Forming unit +Guide unit +High frequency induction welding
unit +squeeze roller) + De-burr frame → Cooling unit → Sizing unit
and straightener → Cold saw under computer-control → Run-out table
→ Packing machine
Advantages
√ High production efficiency, line speed can be up to 50m/min.
√ High yielding, the machine works stably at a high speed, which
improves the yielding of products.
√ Low wastage, low unit wastage and low production cost.
√ High accuracy, diameter error is only 0.5/100 of the pipe OD
Parameter list
| Model | Round pipe(mm) | Square pipe(mm) | Thickness(mm) |
|
| SP20 | Ф8-Ф20 | 6x6-15x15 | 0.3-1.5 |
| SP32 | Ф10-Ф32 | 10x10-25x25 | 0.5-2.0 |
| SP50 | Ф20-Ф50 | 15x15-40x40 | 0.8-3.0 |
| SP76 | Ф32-Ф76 | 25x25-60x60 | 1.2-4.0 |
| SP89 | Ф42-Ф89 | 35x35-70x70 | 1.5-4.5 |
| SP114 | Ф48-Ф114 | 40x40-90x90 | 1.5-4.5 |
| SP140 | Ф60-Ф140 | 50x50-110x110 | 2.0-5.0 |
| SP165 | Ф76-Ф165 | 60x60-130x130 | 2.0-6.0 |
| SP219 | Ф89-Ф219 | 70x70-170x170 | 2.0-8.0 |
| SP273 | Ф114-Ф273 | 90x90-210x210 | 3.0-10.0 |
| SP325 | Ф140-Ф325 | 110x110-250x250 | 4.0-12.7 |
| SP377 | Ф165-Ф377 | 130x130-280x280 | 4.0-14.0 |
| SP406 | Ф219-Ф406 | 170x170-330x330 | 6.0-16.0 |
| SP508 | Ф273-Ф508 | 210x210-400x400 | 6.0-18.0 |
| SP660 | Ф325-Ф660 | 250x250-500x500 | 6.0-20.0 |
| SP720 | Ф355-Ф720 | 300x300-600x600 | 6.0-22.0 |
Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have 4 factories ( Machining,
Assembling, Heat treatment, and Moulding ). We also have our own
R&D department. Welcome to visit us.
Q: What kind of payment term do you do?
A: We do T/T.
Q: What info do you need before giving me the price and proposal?
A: Since we design individual machines based on our customer's
requirements, we need your desired products' basic dimensions,
including all the pipe diameter(or tube length), thickness range,
usage, raw material steel grade, coil weight, and degree of
automation.
Q: What should I do if I just start a new business?
A: Contact us immediately, we provide a free consultant for
pre-sales service. Also, we can help you solve the raw material
(steel coil) purchase, worker training, international market price,
and more.
Q: How do you do QA?
A: We have a special team to do strict QA, this is one of our
strengths:
(1)Every gearbox will be tested for 8 hours with oil inside to
guarantee there is no leak.
(2)Every shaft will be inspected for centering jumpiness.
(3)Every roller will be checked to make sure it's in the range of
tolerance critical parts will be inspected for all dimensions.
Q: Why I should choose you? what are the differences between you
and other Chinese suppliers?
A: We are concentrating on pipe-making machines for more than 20
years. We have constructed many steady trading partners in Asia,
Africa, the middle east, Europe, and South America throughout the
years. Our innovative designed production line and every single
unit of the production line are economical and practical.
